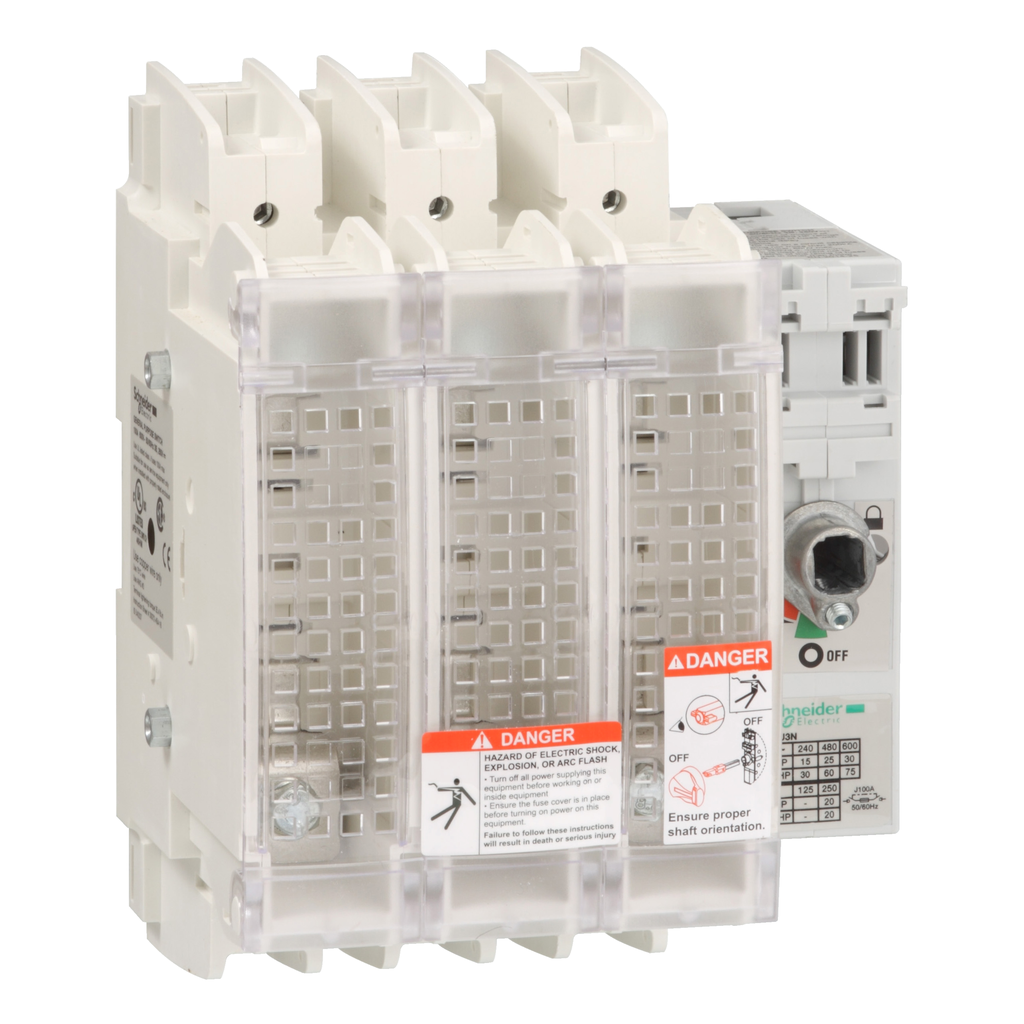

Schneider Electric GS2JU3N Switch Disconnector Fuse 100 Amp 3-Pole UL Size J

Product Description

Schneider Electric offers the GS2JU3N switch disconnector fuse, designed for high-efficiency performance in critical applications. This 100 Amp, three-pole disconnect switch is suitable for motor applications up to fifty-one kilowatts at four hundred volts AC-23. It uses class J fuse links, ensuring reliable operation in various conditions.

• 100 Amp rated for extended use
• Three-pole configuration
• High short circuit current rating of 200kA at 600V

Product Highlights

The GS2JU3N is built with features that enhance safety and reliability, such as screw terminals with terminal shrouds. It can be mounted with an external handle for easy operation. The device complies with UL and CSA standards, making it a reliable choice for electrical safety.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Warranty Length: Eighteen months

Technical Specifications

• Catalog Number: GS2JU3N
• Voltage Rating: 600 VAC
• Number of Poles: 3 Pole
• Amperage: 100 Amp
• Dimensions: One hundred twenty-two point two mm (depth) x one hundred forty-nine point three mm (width) x one hundred eighty-six mm (height)
• Weight: 6.09 lb
• Fuse Type: Class J
• Country of Origin: France
