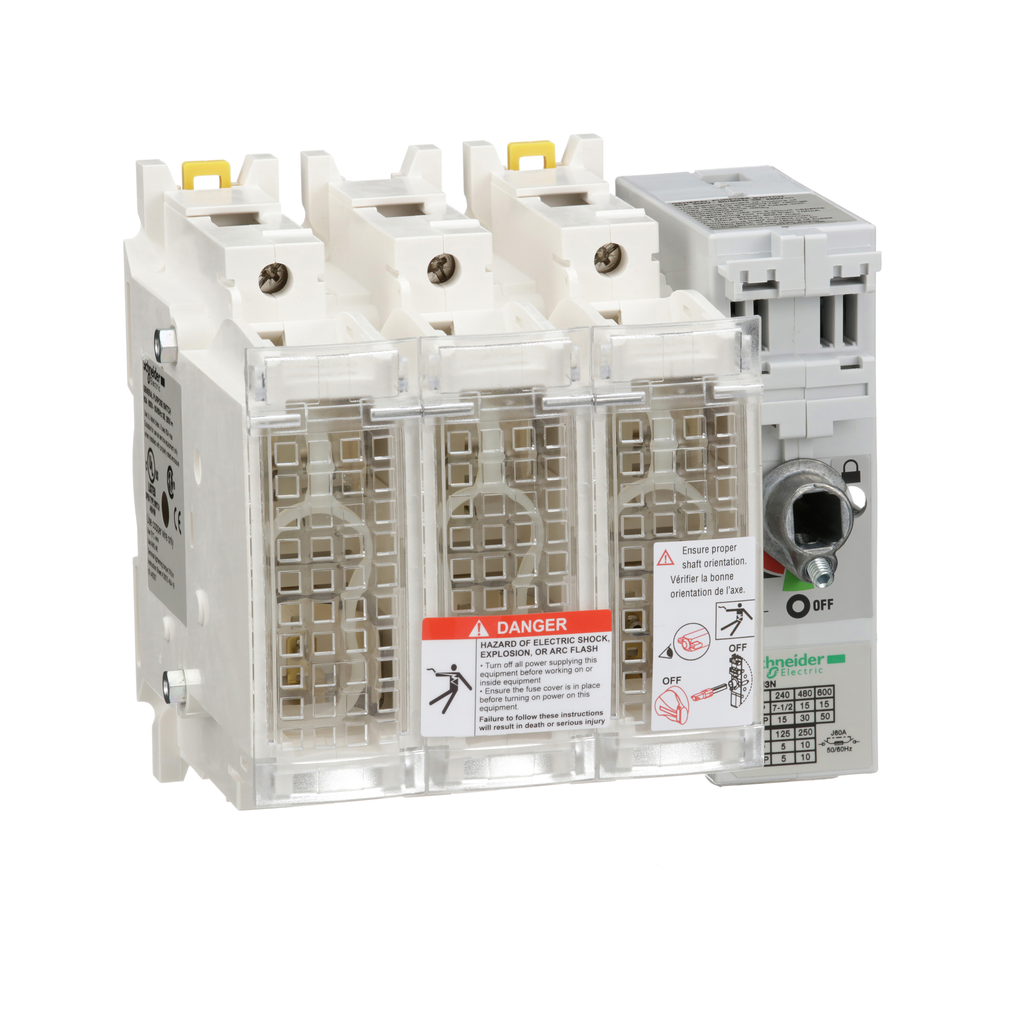

Schneider Electric GS2GU3N Square D GS2GU3N 600 VAC 60 Amp 3-Pole Class J Fusible Disconnect Switch

Product Description

Schneider Electric GS2GU3N is a three-pole switch-disconnector rated at sixty amps and seven hundred fifty volts. It is designed to work with class J fuse links up to sixty amps for motor applications up to thirty kilowatts at four hundred volts under AC-23 conditions. This device includes screw terminals with terminal shrouds, ensuring secure connections. It is compatible with optional auxiliary contact modules for additional functionality.

• High short circuit current rating of one hundred kiloamps at six hundred volts.
• UL and CSA certified for safety and performance.
• Green Premium compliant meeting RoHS and REACh standards.

Product Highlights

This disconnect switch is suitable for protecting motors and other electrical equipment. It is easy to install and configure with options for front-side mounting.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GS2GU3N
• Wattage: thirty kW at four hundred volts, forty kW at five hundred volts, fifty-five kW at six hundred ninety volts
• Amperage: sixty amps
• Number of Poles: three pole
• Depth: one hundred twenty-three mm
• Width: one hundred forty-nine point three mm
• Height: one hundred thirty-six mm
• Operating Temperature: negative twenty to seventy degrees Celsius
• Country of Origin: France
• Warranty Length: eighteen months
