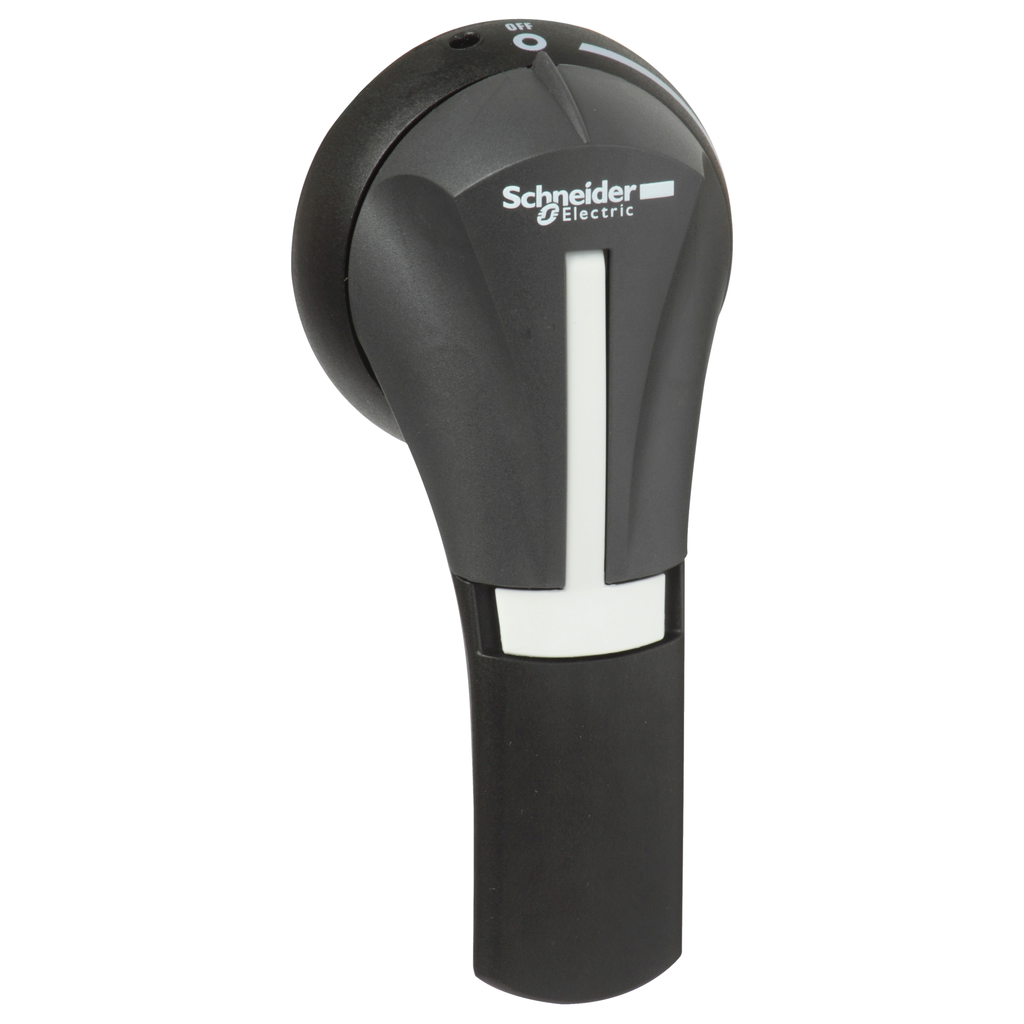

Schneider Electric GS2AH130 Square D Black Rotary Lockable Disconnect Switch Handle Assembly

Product Description

The Schneider Electric GS2AH130 is a rotary handle designed for use with three-pole switch disconnectors ranging from thirty to four hundred amps. This product is suitable for UL fuse switch-disconnectors including GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, and GS2QU. It features a black handle with a grey front plate and is padlockable for added safety. The handle is designed for front-side operation through the door of an enclosure with NEMA protection ratings 1, 3R, and 12. To function correctly, the handle requires a separate shaft for external operation, model GS2AE, which is available in several lengths. This product complies with Green Premium standards, including RoHS and REACh regulations.

• Black handle with grey front plate
• Padlockable for enhanced security
• Compatible with multiple switch models

Product Highlights

This rotary handle allows for safe operation of disconnect switches and is ideal for installation in commercial and industrial applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: GS2AH130

Technical Specifications

• Weight: 0.53 lb
• Actuator: Black
• Amperage Range: 30 Amp to 400 Amp
• Standard: UL, CSA
• Enclosure Ratings: NEMA 3R/12
• Warranty Length: 18 months
• Country of Origin: Tunisia
• Line Rated Current: 100 A
