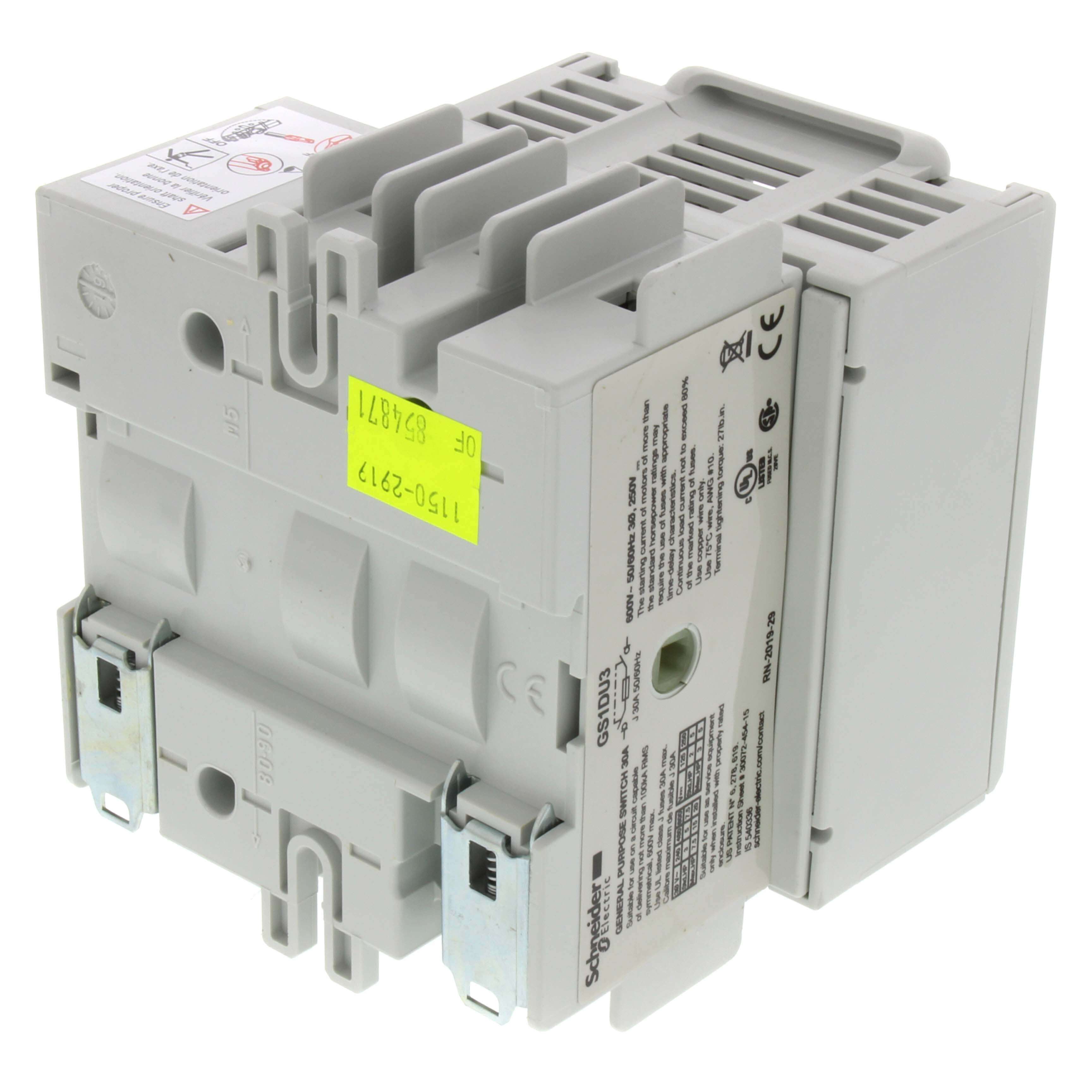

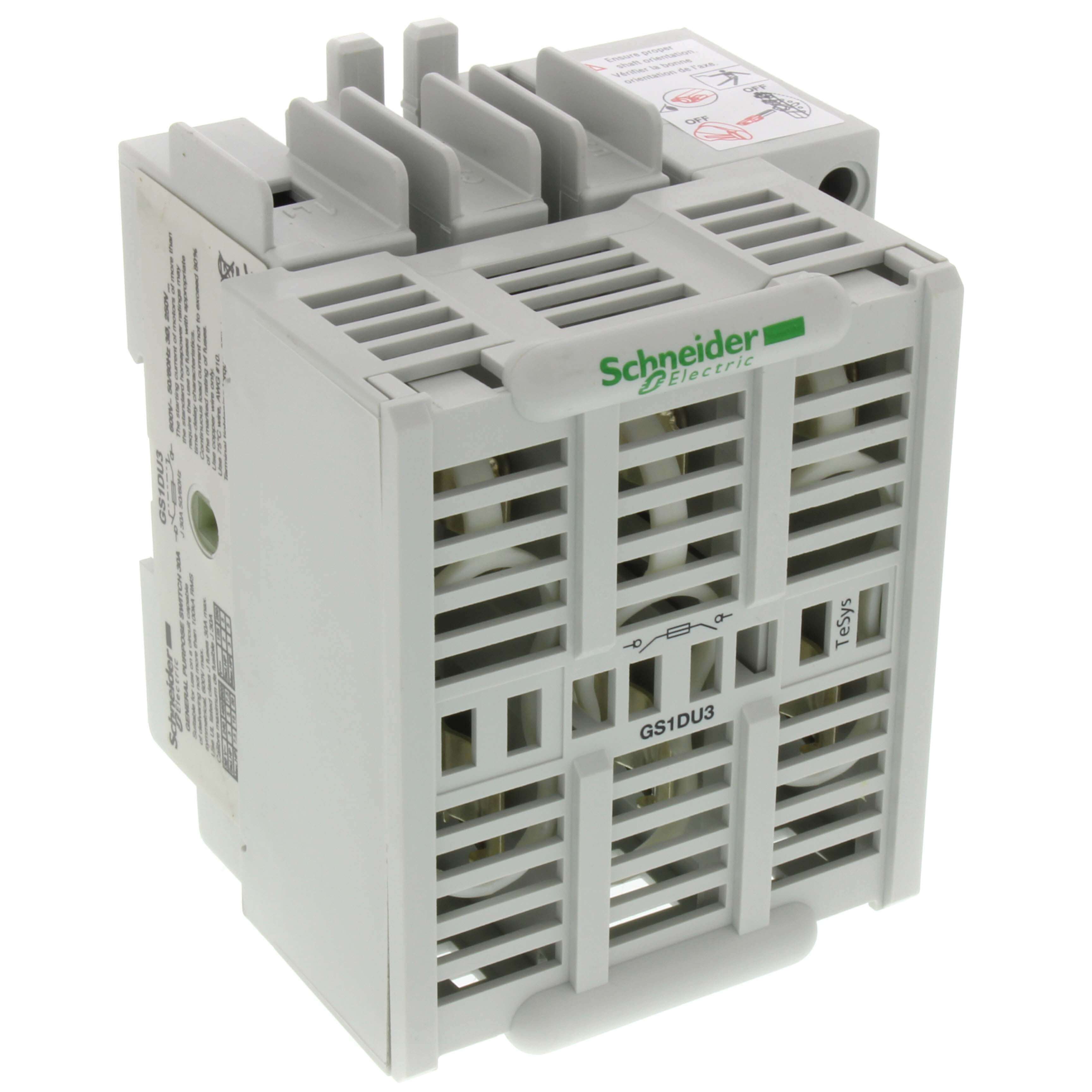

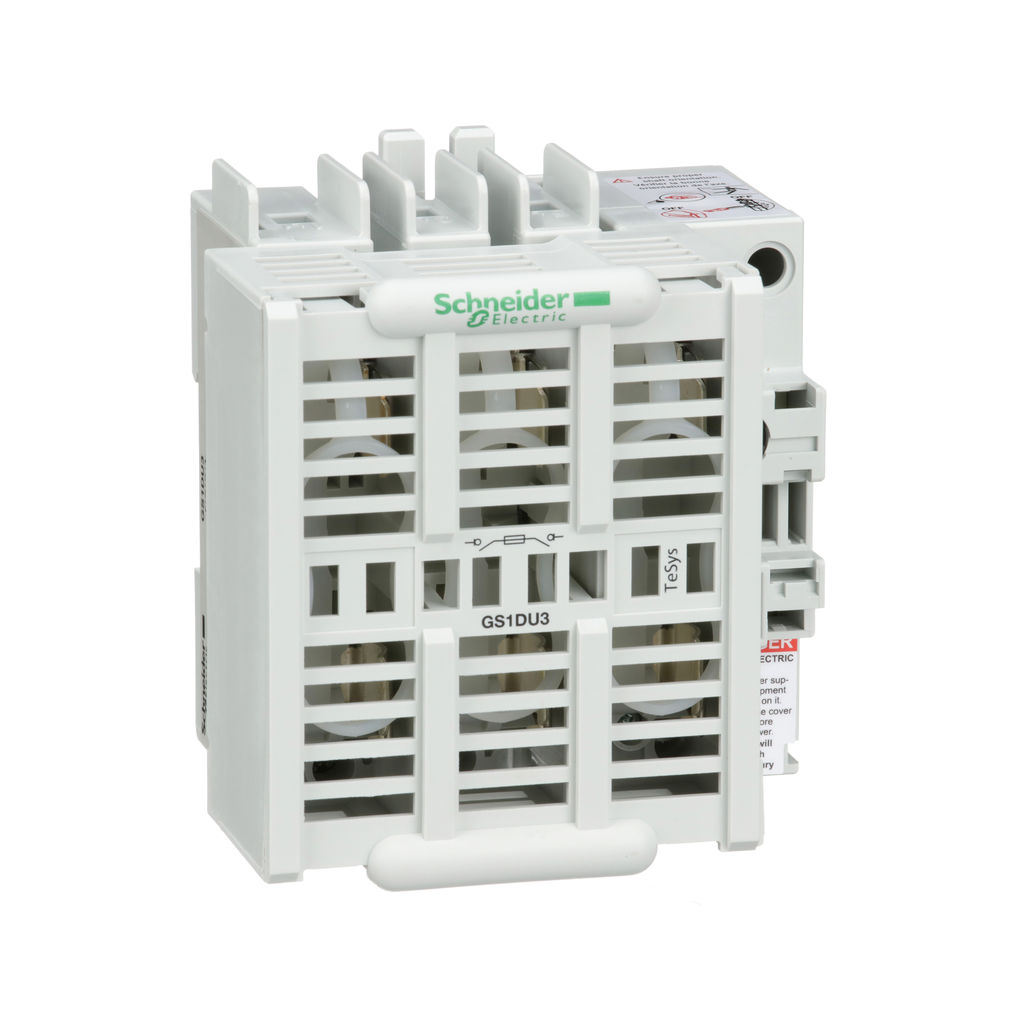

Schneider Electric GS1DU3 TeSys GS Switch Disconnecter Fuse 3P 600V Type J Fuse

Product Description

Schneider Electric GS1DU3 is a TeSys GS switch disconnecter fuse. This product features 3 poles and has an operating voltage of six hundred volts. It is designed to work with Class J fuse links up to thirty amps. Suitable for motor applications up to fifteen kilowatts at four hundred volts, this device is a vital component in electrical systems.

• 3 Pole, 30 Amp, 600 Volt operation
• Compatible with Class J fuses
• UL and CSA certified for safe operation

Product Highlights

This switch disconnecter fuse is equipped with screw terminals and terminal shrouds. The high short-circuit current rating of one hundred kA at six hundred volts enhances its reliability.

Product Information

Standard Information

• Catalog Number: GS1DU3
• Brand: Schneider Electric

Technical Specifications

• Number of Poles: 3
• Amperage: 30 Amp
• Voltage: 600 VAC
• Wattage: Up to 15 kW at 400 Volt
• Depth: 3.9 inches
• Width: 4.13 inches
• Height: 4.57 inches
• Weight: 1.54 lb
