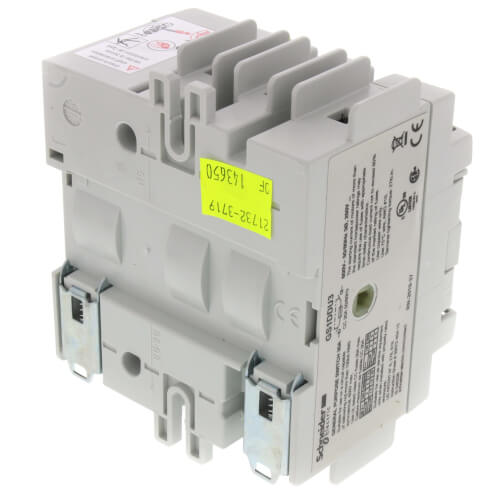

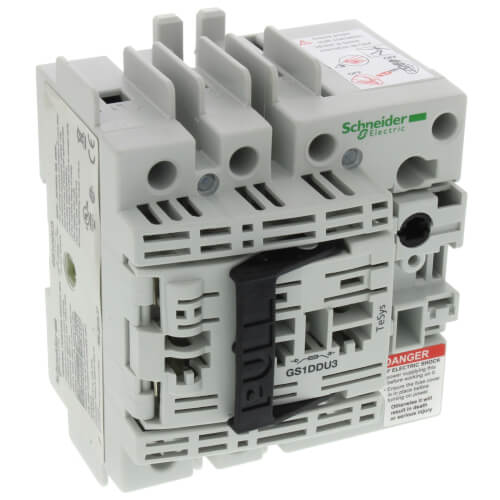

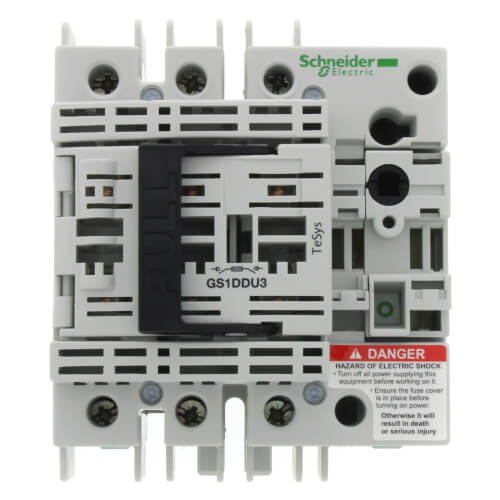

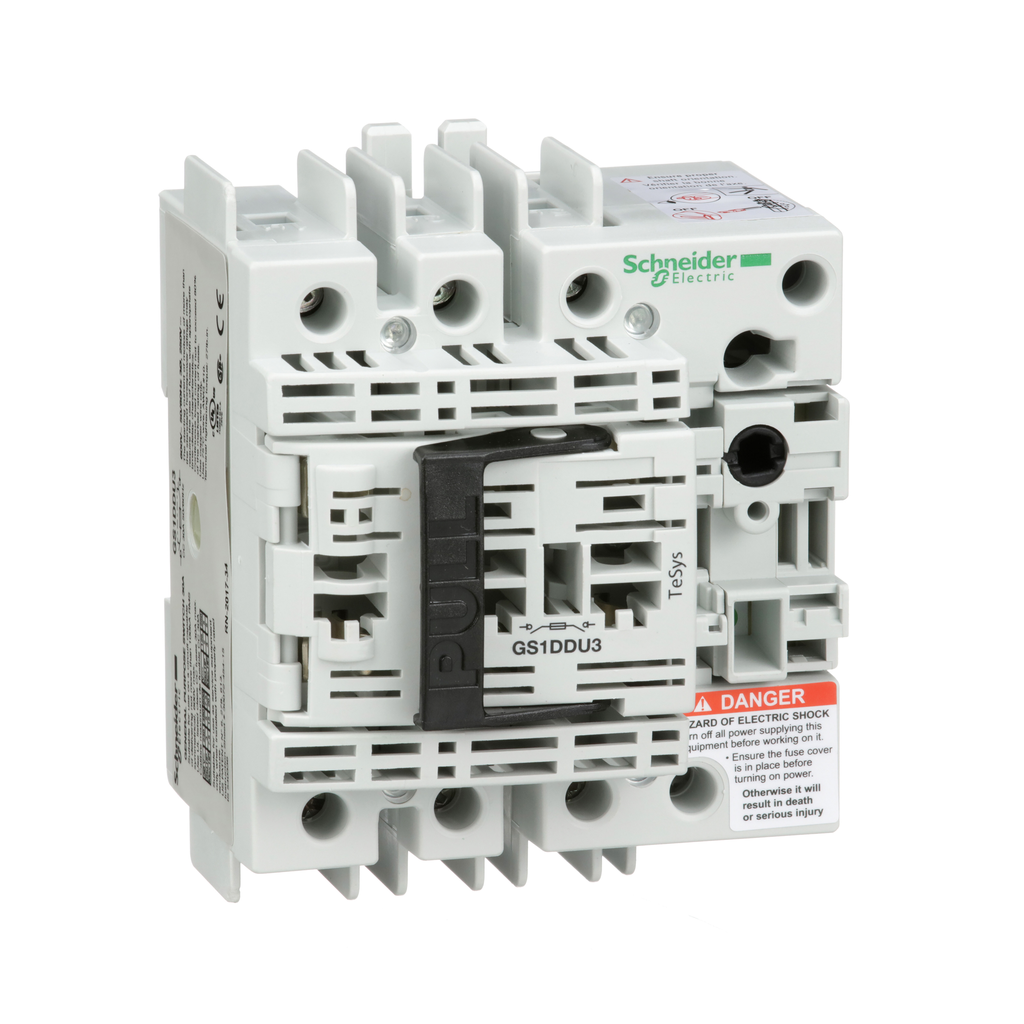

Schneider Electric GS1DDU3 TeSys GS 600 VAC 30 Amp 3-Pole Class CC IP20 Copper Fusible Disconnect Switch

Product Description

The Schneider Electric GS1DDU3 is a fuse switch-disconnector designed for applications requiring a reliable power disconnect. This model features three poles and operates at a voltage rating of six hundred volts AC. The device is suitable for motor applications up to fifteen kilowatts at four hundred volts. It can handle current up to thirty amps and is compatible with class CC fuse links. The GS1DDU3 is ideal for use in commercial electrical installations where safety and reliability are critical.

• Three-pole design with a thirty amp capacity
• UL/CSA certified and Green Premium compliant
• Features an indicator for visible on/off operation

Product Highlights

This disconnect switch provides significant protection and is equipped with screw terminals and three-pole terminal shrouds. It supports direct operating handles and can be supplemented with auxiliary contact modules for enhanced functionality.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Product Type: Switch-disconnector-fuse
• Voltage: 600 VAC
• Amperage: 30 Amp
• Depth: 3.29 inches
• Width: 3.82 inches
• Height: 4.57 inches
• Weight: 1.32 lb
• Country of Origin: France
• Fuse Type: UL
• Enclosure: IP20 with terminal cover
• Warranty Length: 18 months
