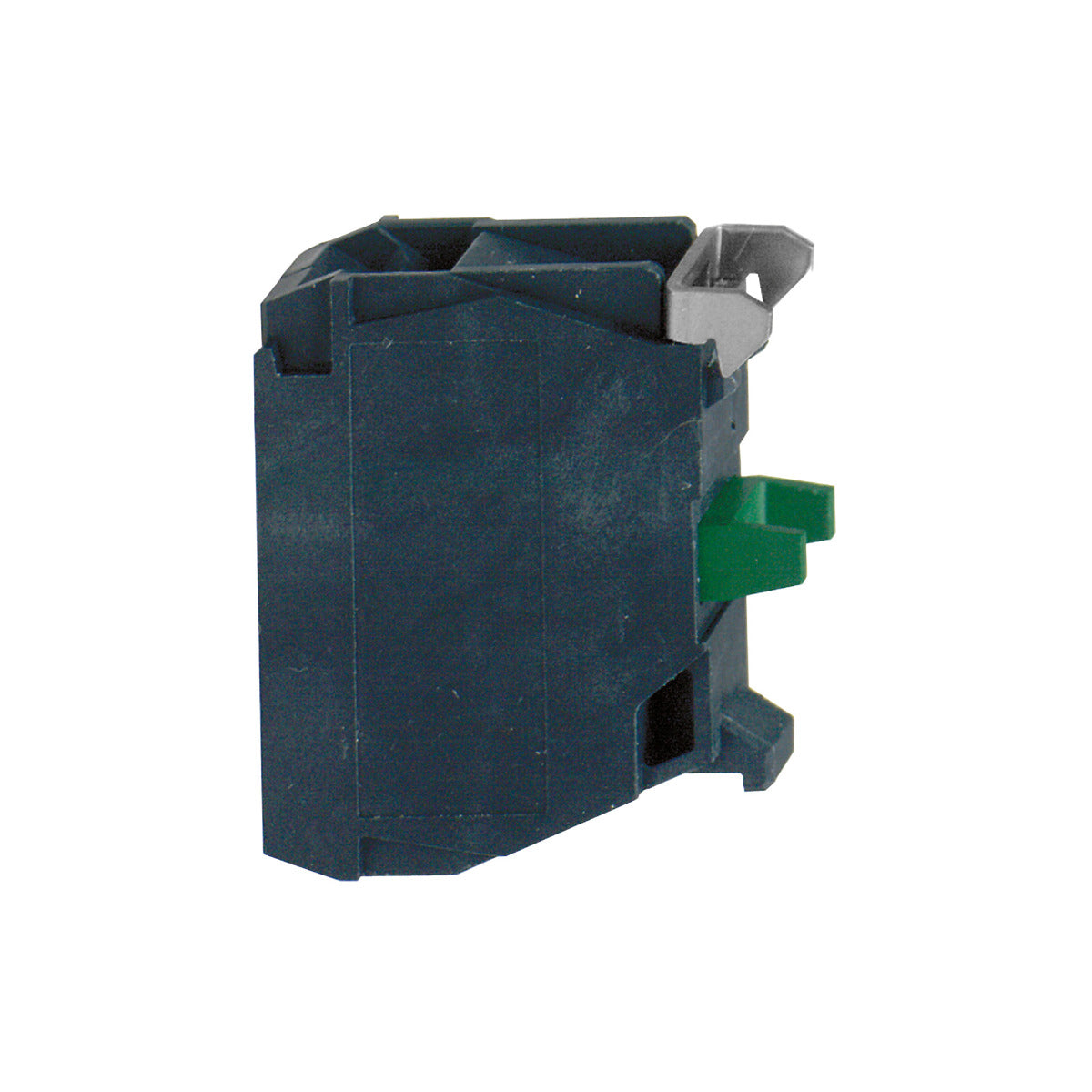

Schneider Electric GS1AM110 1NO 600 VAC 10 Amp Non-Fusible Disconnect Switch Auxiliary Contact

Product Description

The Schneider Electric GS1AM110 is a TeSys GS instantaneous auxiliary contact block. It is suitable for use with both 3-pole and 4-pole fuse switch-disconnectors ranging from 50 to 1250 Amperes according to IEC standards and 30 to 800 Amperes for UL standards. This device offers one normally open (1NO) early break contact, capable of handling up to three Amperes at twenty-four Volts DC-13 and three Amperes at two hundred thirty Volts AC-15. The contact enables I/O and test position signaling, ensuring effective operation.

• Compatible with various switch models including GS2D to GS2V
• Front mounting and screw terminal connections
• Multi-standard certified by IEC and UL, compliant with RoHS and REACh regulations

Product Highlights

This auxiliary contact module is designed for seamless integration with Schneider Electric devices, providing reliable performance for a range of applications.

Product Information

Standard Information

• Catalog Number: GS1AM110
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 100 A
• Weight: 0.03 lb
• Contact Configuration: 1 NO
• Operating Cycles: 1,000,000 cycles on AC-15
• Country of Origin: France
• Warranty: 18 months
• GTIN: 03389110181760
