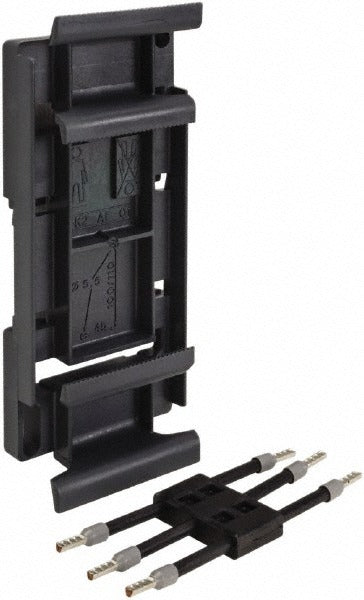

Schneider Electric GK2AF01 Circuit Breaker Adapter Plate

Product Description

The SCHNEIDER ELECTRIC GK2AF01 is a circuit breaker adapter plate designed to mount and integrate circuit breakers with compatible TeSys series contactors and motor starters. This accessory provides a secure mechanical connection point, allowing electrical protection devices to be coupled directly to contactor assemblies in control panel builds. Weighing 0.15 pounds and measuring 5.4 inches wide by 2.5 inches tall by 1.4 inches in length, the GK2AF01 is a compact, purpose-built mounting component. It is typically installed by licensed electricians and panel builders during control panel assembly or retrofit work.

This adapter plate is used in industrial and commercial electrical control applications where TeSys contactors are paired with circuit breakers for motor protection or power switching. It is suited for new panel builds and replacement scenarios where a direct-mount breaker-to-contactor configuration is required. The GK2AF01 fits within standard enclosure footprints and is compatible with the LC1D09-D25 and LC1K series contactors in the TeSys product line.

Key Features

• Enables direct mechanical coupling of circuit breakers to compatible TeSys contactors
• Compact form factor: 5.4 inches wide, 2.5 inches tall, 1.4 inches in length
• Lightweight construction at 0.15 pounds for easy panel integration
• OEM accessory designed for precise fit with LC1D09-D25 and LC1K series
• Single-unit packaging supports one-for-one replacement or new installation

Compatibility

Designed for use with Schneider Electric TeSys series contactors, specifically the LC1D09-D25 and LC1K contactor families.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and the panel manufacturer guidelines. De-energize and lock out the control panel before installing or removing the adapter plate. Verify that all contactor and breaker mounting hardware is fully seated and secure before re-energizing the circuit. Do not modify the adapter plate or use it with contactor models outside of the specified compatible series.
