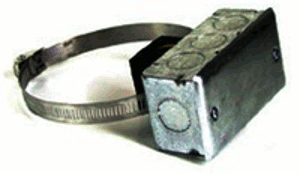

Schneider Electric ETS800 Temperature Sensor Strap On 10K Ohm Thermistor

Product Description

The Schneider Electric ETS800 is a temperature sensor designed for strap-on installation. This sensor features an accuracy rating of plus or minus 0.2 degrees Celsius and operates efficiently with a 10K Ohm thermistor and an 11K shunt.

• Operating temperature range: -40 degrees Fahrenheit to 302 degrees Fahrenheit
• Compatible with I/A systems
• Lightweight and compact design

Product Highlights

Utilizing this sensor ensures precise temperature measurement for various applications within HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Temperature Sensor

Technical Specifications

• MPN: ETS800
• Measurement Range: -40 to 150 degrees Celsius
• Sensor Type: 10K Ohm type 3 thermistor
• Output: 10K Ohm at 70 degrees Fahrenheit (21 degrees Celsius)
• Dimensions: Length: 1.601 cm, Width: 1.804 cm, Height: 0.458 cm
• Weight: 344.731 g
• Mounting Mode: Back of stainless steel plate
• Relative Humidity: 0-90% I/A
