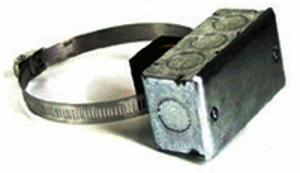

Schneider Electric ETS500 Temperature Sensor Strap On 10K Ohm Thermistor

Product Description

The Schneider Electric ETS500 is a reliable temperature sensor designed for use in HVAC systems. This strap-on sensor features a 10K ohm thermistor that provides accurate measurements in a variety of conditions. With an operating temperature range from negative forty degrees to three hundred two degrees Fahrenheit, it suits many industrial applications.

• Accuracy of +/- 0.2 degrees Celsius
• Compatible with Continuum systems
• Compact and durable build for robust environments

Product Highlights

The ETS500 is ideal for temperature measurement on pipes and other surfaces.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ETS500

Technical Specifications

• Operating Temperature: -40 to 302 °F (-40 to 150 °C)
• Accuracy: +/- 0.2 °C (0 °C to 70 °C)
• Resistance: 10K Ohm at 70 °F (21 °C)
• Sensor Type: 10 kOhm type 2 thermistor

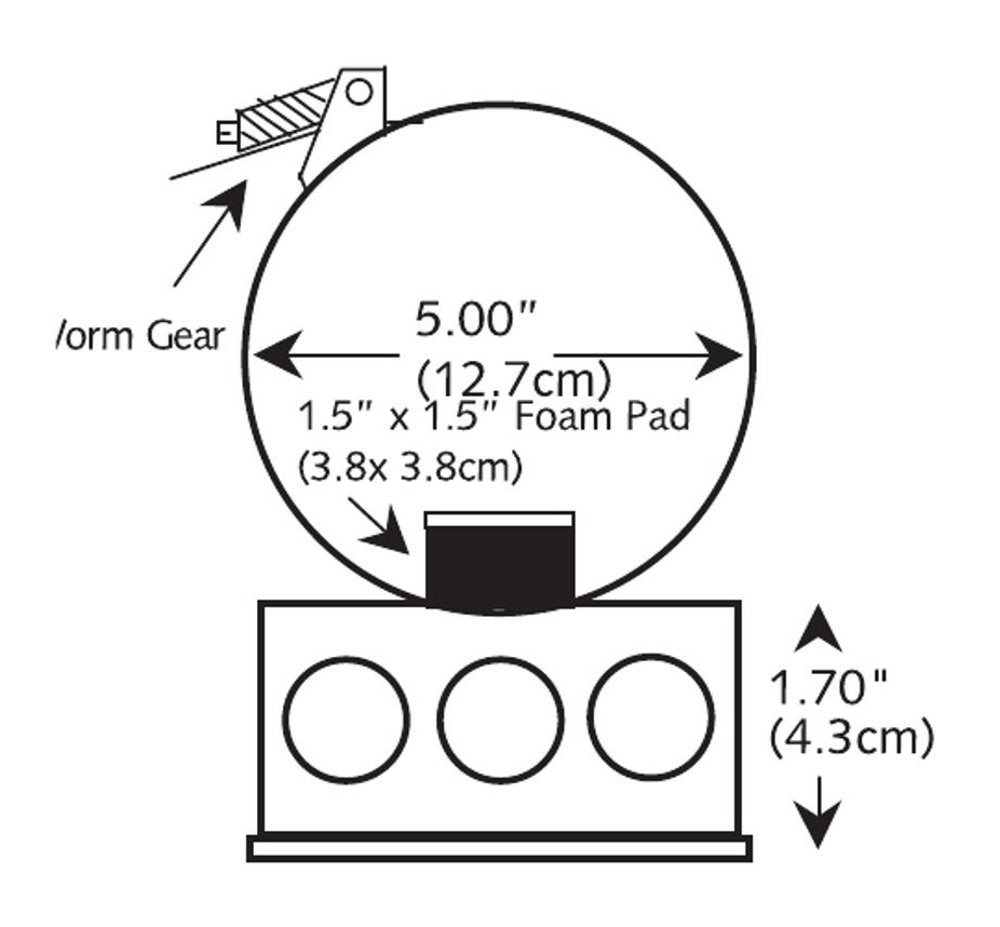

• Dimensions: 29 mm (depth) x 43 mm (height) x 70 mm (width)
• Environment: Maximum relative humidity of 0-90% with Continuum
• Mounting Mode: Back of stainless steel plate
