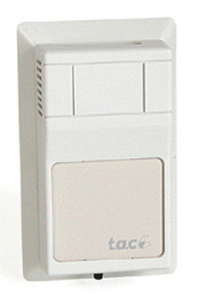

Schneider Electric ETR801-TI Room Temperature Sensor 10K Ohm Thermistor with 11K Shunt

Product Description

Schneider Electric ETR801-TI is a room temperature sensor with a 10K Ohm thermistor. This sensor is compatible with I/A Series systems and features an 11K Ohm shunt. It includes a setpoint and thermometer indicator, labeled with the SE logo. Ideal for monitoring indoor environments, it is suitable for HVAC systems.

• Operating temperature range: -40 to 302 degrees Fahrenheit
• Output resistance: 10K Ohms at 77 degrees Fahrenheit
• High accuracy at +/- 0.4 degrees Fahrenheit

Product Highlights

This room temperature sensor is built for reliable temperature measurement in residential and commercial spaces. Its robust design allows it to function effectively in harsh environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Sensor

Technical Specifications

• MPN: ETR801-TI
• Location: Living space
• Height: 114.55 mm
• Width: 69.85 mm
• Depth: 69.85 mm
• Device Application: Room application
• Type of Measurement: Temperature
• Analogue Output Type: 5.238 kOhm
