Schneider Electric ETR801 Room Temperature Sensor

Product Description

The Schneider Electric ETR801 is a room temperature sensor designed for HVAC systems. It uses a 10K Ohm thermistor with an 11K Ohm shunt, ensuring compatibility with I/A Series applications. This sensor is ideal for monitoring temperature in various environments.

• Accuracy: +/- 0.4 F (+/- 0.2 C)
• Output: 10K Ohms at seventy-seven F (twenty-five C) with an eleven K Ohms shunt resistor
• Operating temperature: -40 to 302 F (-40 to 150 C)

Product Highlights

Reliable temperature measurement suitable for wall installation.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Sensor

Technical Specifications

• Sensor Type: Temperature, 10 kOhm thermistor with 11 kOhm shunt
• Measurement Temperature: -40 to 150 °C
• Relative Humidity: 0-90 % I/A
• Mounting Mode: Junction box, drywall

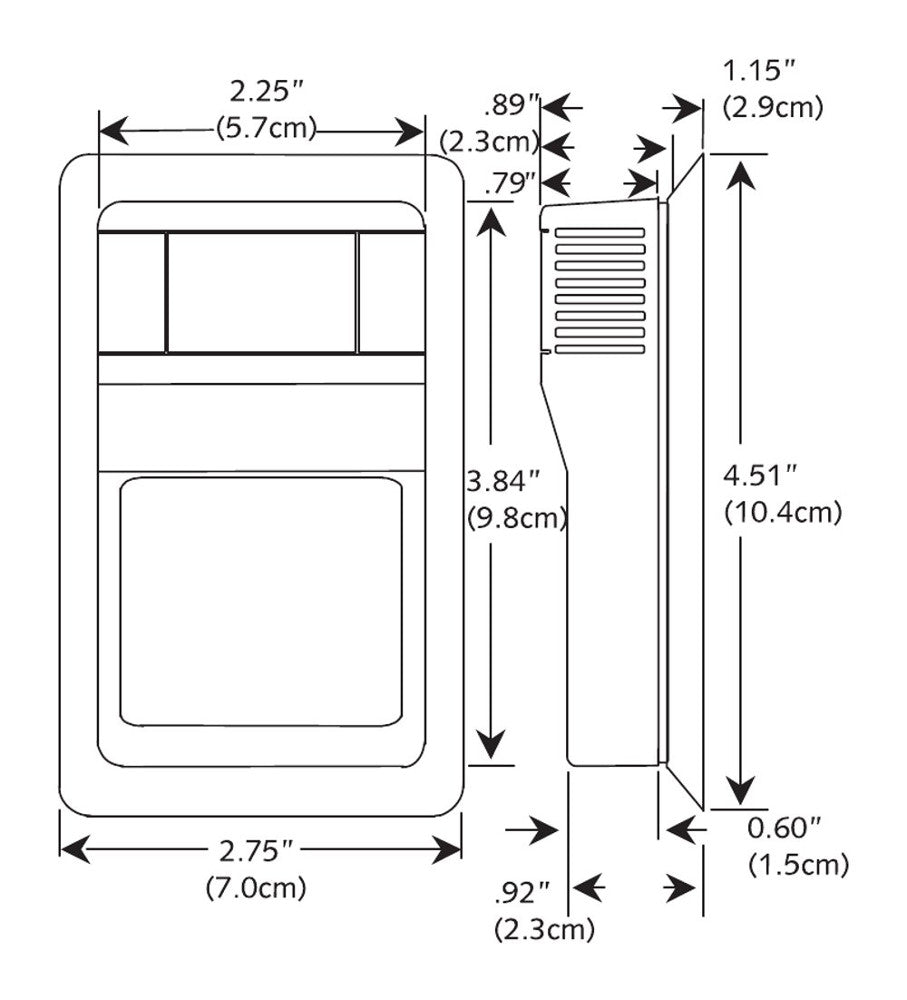

• Dimensions: Height - 104 mm, Width - 70 mm, Depth - 23 mm
• Color: Cloud white
• Wire Gauge: AWG 22
