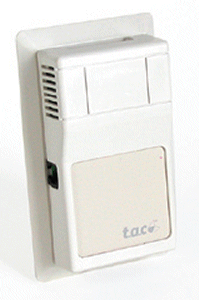

Schneider Electric ETR800 Room Temperature Sensor 10K Ohm Thermistor

Product Description

The Schneider Electric ETR800 is a room temperature sensor featuring a ten kilohm thermistor with an eleven kilohm shunt for compatibility with I/A series systems. This sensor is designed for accurate temperature monitoring in various settings, particularly in HVAC applications.

• Accuracy: +/- 0.4 F (+/- 0.2 C)
• Operating Range: -40 to 302 F (-40 to 150 C)
• Output: 10K Ohms at 77 F (25 C) with 11K Ohms shunt resistor

Product Highlights

This sensor provides high accuracy and reliability for temperature measurement in living spaces. The ETR800 is compatible with existing I/A systems, making it a versatile choice for HVAC professionals.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: ETR800

Technical Specifications

• Type: Temperature sensor
• Sensor Type: 10 kOhm thermistor with 11 kOhm shunt

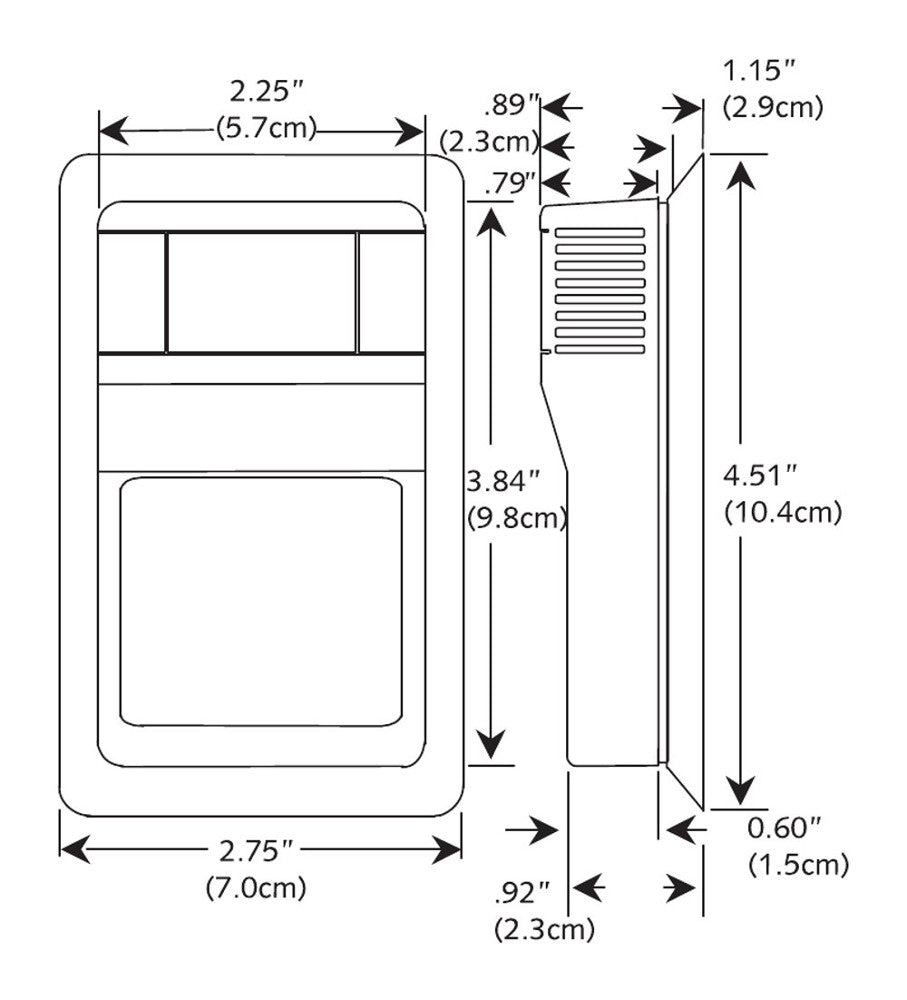

• Depth: 23 mm
• Height: 104 mm
• Width: 70 mm
• Location: Wall installation
• Mounting Mode: Drywall, junction box
• Relative Humidity: 0-90 % I/A
