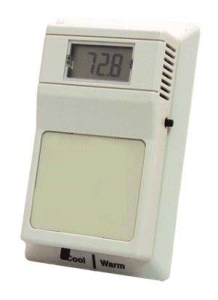

Schneider Electric ETR800-LCD2 Room Temperature Sensor - 10K Ohm Thermistor w/ 11K Shunt

Product Description

The Schneider Electric ETR800-LCD2 is a room temperature sensor featuring a 10K ohm thermistor with an 11K ohm shunt. This device is designed for I/A Series compatibility and displays temperature readings in Fahrenheit on its LCD screen.

• Compatible with I/A Series systems
• Operating temperature range: -40 to 302 degrees Fahrenheit
• Accuracy: +/- 0.4 degrees Fahrenheit

Product Highlights

This sensor is suitable for wall installation in living spaces. It ensures precise temperature readings essential for effective HVAC management, improving energy efficiency and comfort in residential and commercial buildings.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Sensor

Technical Specifications

• MPN: ETR800-LCD2
• Input Type: Temperature
• Measurement Range: N/A
• Ambient Temperature Range: -40 to 302 degrees Fahrenheit
• Relative Humidity Range: 0-90% RH, non-condensing
• Weight: 0.022 kilograms
• Dimensions: 104 mm (Height) x 70 mm (Width) x 29 mm (Depth)
