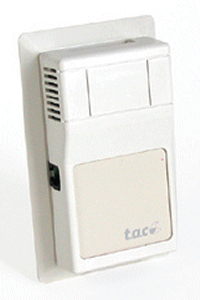

Schneider Electric ETR202-RS232 Room Temperature Sensor 10K Ohm Thermistor

Product Description

The Schneider Electric ETR202-RS232 is a room temperature sensor designed for HVAC applications. This sensor uses a 10K Ohm Type 2 thermistor, providing high accuracy for temperature measurements.

• Compatible with I/NET systems
• Includes an override feature
• Features RS232 communication jack

Product Highlights

The ETR202-RS232 sensor is suitable for wall installation in living spaces. It operates within a wide temperature range and has a precise resistance output. This device is ideal for HVAC professionals who need reliable temperature monitoring.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Measurement Type: Temperature
• Sensor Type: 10K Ohm Type 2 Thermistor
• Operating Temperature: -40 to 302 F (-40 to 150 C)
• Accuracy: +/- 0.4 F (+/- 0.2 C)
• Output: 10K Ohms at 77 F (25 C)
• Relative Humidity: 0-90 % RH, non-condensing
• Dimensions: 104 mm Height, 70 mm Width, 29 mm Depth
