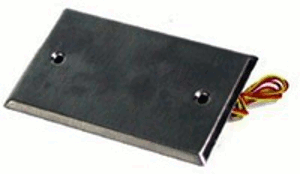

Schneider Electric ETP800-L Temperature Sensor 10K Ohm Thermistor with 11K Shunt

Product Description

The Schneider Electric ETP800-L is a temperature sensor designed to be used in HVAC applications. It features a 10K Ohm thermistor with an 11K shunt. This sensor is suitable for wall installation and can measure temperatures accurately from negative forty degrees Fahrenheit to three hundred two degrees Fahrenheit.

• Features an accuracy of plus/minus zero point two degrees Celsius
• Operates within a temperature range of minus forty degrees Celsius to one hundred fifty degrees Celsius
• Compatible with I/A systems and easy to install on walls

Product Highlights

This product is ideal for monitoring outside air temperatures and can handle various environmental conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Sensor Type: Temperature: 10 kOhm thermistor with 11 kOhm shunt
• Operating Temperature Range: -40 F to 302 F (-40 C to 150 C)
• Output: 10K Ohm at 70 F (21 C)
• Dimensions: 114 mm height, 70 mm width, depth of 3 mm
• Relative Humidity Range: 0-90 % RH, non-condensing
• Accuracy: +/- 0.2 C (0 C to 70 C)
