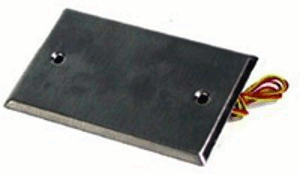

Schneider Electric ETP200-L Temperature Sensor

Product Description

The Schneider Electric ETP200-L is a temperature sensor designed for wall installation. This sensor features a stainless steel wall plate and delivers precise readings with an accuracy of plus or minus 0.2 degrees Celsius. It uses a 10K Ohm thermistor for temperature measurement, suitable for operating temperatures ranging from negative forty degrees Fahrenheit to three hundred two degrees Fahrenheit.

• Stainless steel wall plate for durability
• Accuracy: +/- 0.2 C from 0 C to 70 C
• Compatible with I/NET

Product Highlights

This sensor is ideal for HVAC applications, ensuring reliable temperature sensing in various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ETP200-L

Technical Specifications

• Type of Measurement: temperature
• Operating Temperature: -40 F to 302 F
• Output: 10K Ohm at 70 F
• Temperature Resolution: 0.1 °C
• Relative Humidity: 0-90 % RH, non-condensing

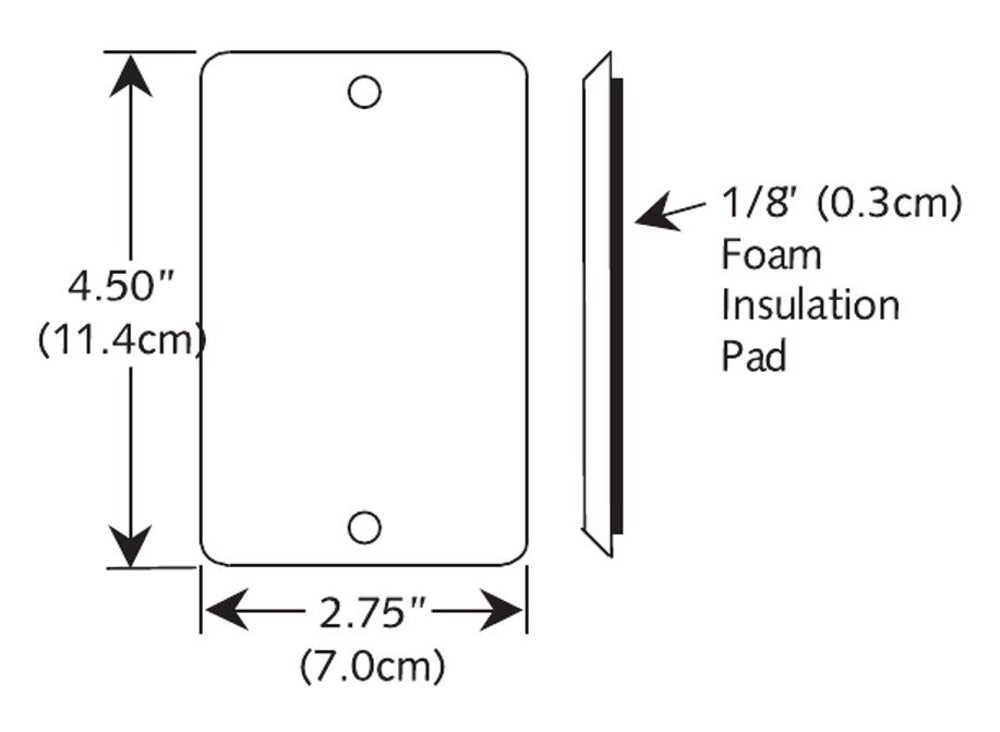

• Depth: 3 mm
• Height: 114 mm
• Width: 70 mm
