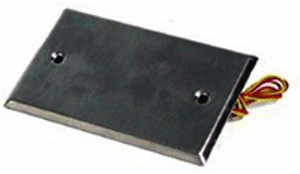

Schneider Electric ETP100-L Temperature Sensor Stainless Steel Wall Plate

Product Description

Schneider Electric's ETP100-L is a temperature sensor designed for wall installation. This sensor features a stainless steel wall plate and offers high accuracy of plus or minus 0.2 degrees Celsius. It uses a 1.8K Ohm thermistor suitable for various HVAC applications.

• Stainless steel wall plate for durability
• Operating temperature range of minus forty degrees Fahrenheit to three hundred two degrees Fahrenheit
• Vista compatibility with TAC logo

Product Highlights

The ETP100-L provides reliable temperature readings in residential and commercial environments. It is ideal for monitoring ambient air temperatures and integrates smoothly into HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Accuracy: +/- 0.2 C
• Thermistor Type: 1.8K Ohm
• Operating Temperature Range: -40 F to 302 F

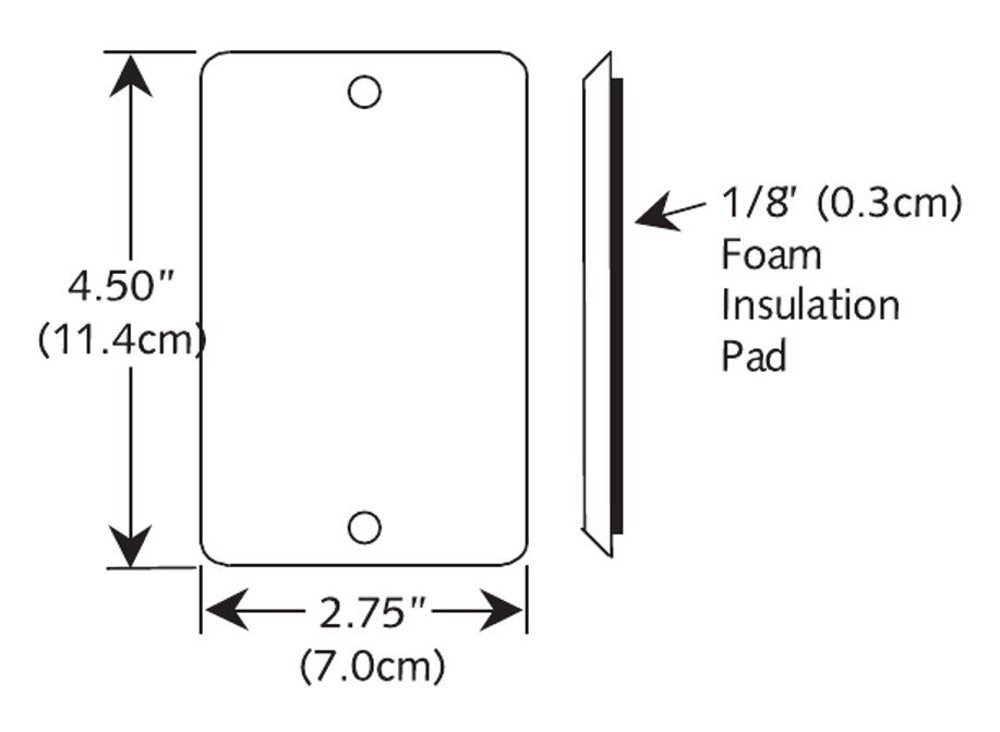

• Dimensions: 3 mm depth, 114 mm height, 70 mm width
• Material: Stainless steel
• Relative Humidity Range: 0-90 % RH, non-condensing
• Calibration Certificate: None
