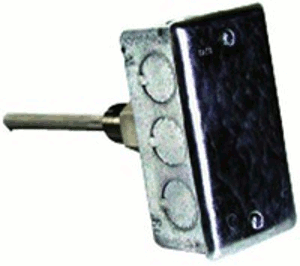

Schneider Electric ETIPK0-2 temperature sensor 2 immersion

Product Description

The Schneider Electric ETIPK0-2 is a temperature sensor designed for various applications, particularly in HVAC systems. This sensor features two immersion points, providing accurate temperature readings. It operates with a platinum resistance of one kilo-ohm, ensuring precise measurements across a wide temperature range.

• Two immersion sensor for reliable readings
• Accuracy: +/- 0.06 Ohm at thirty-two degrees Fahrenheit (zero degrees Celsius)
• Operating range from negative fifty degrees Fahrenheit to two hundred seventy-five degrees Fahrenheit (-45.5 C to 134.8 C)

Product Highlights

This sensor is suitable for monitoring temperature in environments like plant rooms and piping systems. It is housed in a galvanized steel enclosure for durability.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: ETIPK0-2
• Type of Measurement: temperature
• Relative Humidity for Operation: 0-90 % RH, non-condensing
• Temperature Resolution: 0.1 °C

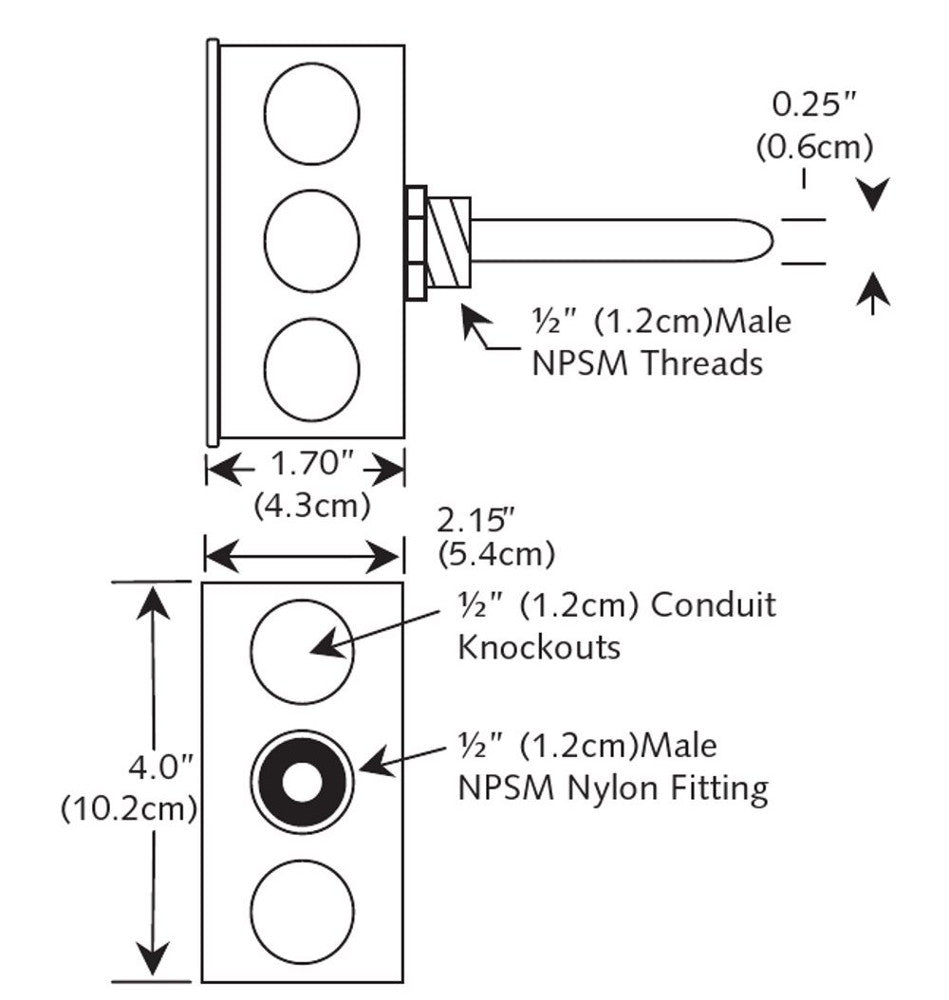

• Depth: 43 mm
• Height: 102 mm
• Width: 54 mm
• Accuracy: +/- 0.06 Ohm at 32 F (0 C)
