Schneider Electric ETI800-2-4X Temperature Sensor 2 in Immersion

Product Description

The Schneider Electric ETI800-2-4X is a temperature sensor designed for accurate temperature measurements in various applications. This product features a two-inch immersion design suitable for pipe installations in indoor and outdoor settings.

• Accurate to +/- 0.2 C within the range of 0 C to 70 C
• Includes a 10K Ohm thermistor equipped with an eleven K Ohm shunt
• NEMA 4X enclosure provides protection against dust and water

Product Highlights

This sensor is ideal for monitoring temperatures in plant rooms and other utilities. Its robustness and reliability make it suitable for HVAC and plumbing applications.

Product Information

Standard Information

• Device Application: Pipe
• Calibration Certificate: None

Technical Specifications

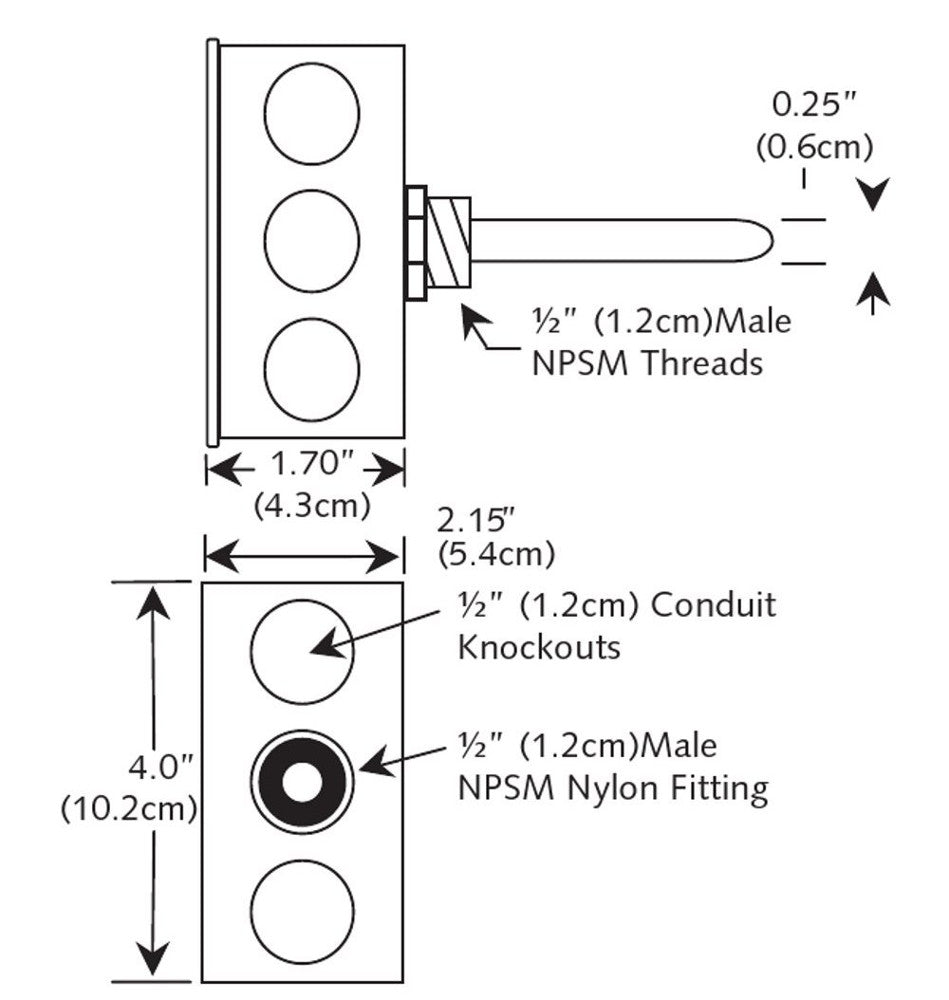

• Depth: 43 mm
• Height: 102 mm
• Width: 54 mm
• Operating Temperature: -40 F to 302 F
• Relative Humidity: 0-90 % RH, non-condensing
• Material: Steel
• Output Type: 10K Ohm at 70 F
• Sensor Type: 10 kOhm thermistor with 11 kOhm shunt
