Product Description

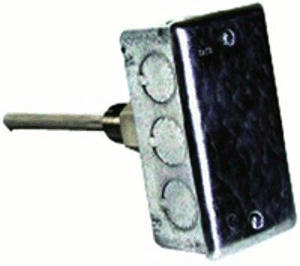

The Schneider Electric ETI200-2 is a reliable temperature sensor designed for immersion applications. This sensor features two immersions and has an accuracy of plus/minus 0.2 degrees Celsius within the range of 0 to 70 degrees Celsius. With a 10K Ohm thermistor, it provides precise temperature readings and is capable of operating in extreme conditions, ranging from minus forty degrees Fahrenheit to three hundred two degrees Fahrenheit.
- Two immersion type sensor
- Compatible with I/NET systems
- Constructed with a galvanized steel enclosure
Product Highlights
Schneider Electric ETI200-2 temperature sensor is suited for various industrial applications, providing accurate temperature monitoring and robust durability.
Product Information
Standard Information
-
Brand: Schneider Electric
-
Country of Origin: US
Technical Specifications
-
MPN: ETI200-2
-
Operating Temperature Range: -40 F to 302 F (-40 C to 150 C)
-
Thermistor Type: 10K Ohm type 2 thermistor
-
Accuracy: +/- 0.2 C
-
Response Time: Defined but not specified
-

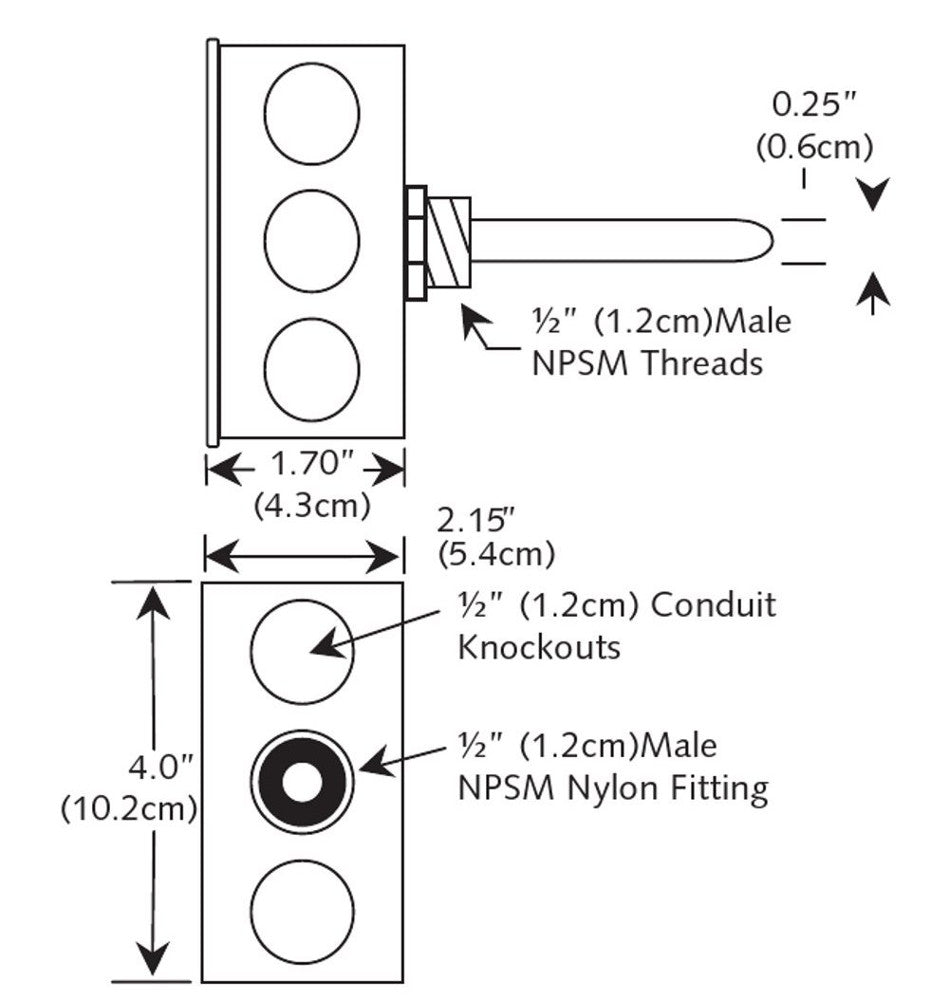

Dimensions: 43 mm Depth, 102 mm Height, 54 mm Width
-
Relative Humidity for Operation: 0-90 % RH, non-condensing
-
Installation Type: Surface mount
