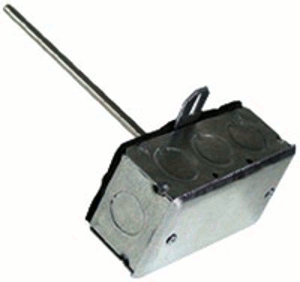

Schneider Electric ETDPK0-6 temperature sensor 6 duct

Product Description

Schneider Electric ETDPK0-6 is a temperature sensor designed for HVAC applications. It features a six duct single point measurement with an accuracy of plus or minus one ohm at seventy degrees Fahrenheit. The sensor uses one thousand ohm platinum elements and outputs one thousand ohm at thirty-two degrees Fahrenheit, or zero degrees Celsius.

• 6 Duct, Single Point
• Accuracy: +/- 1.0 Ohm at 70 F
• Galvanized Steel Enclosure

Product Highlights

This sensor is built for reliable temperature monitoring in duct systems. Its operating temperature range extends from minus fifty degrees Fahrenheit to two hundred seventy-five degrees Fahrenheit, making it suitable for diverse environments.

Product Information

Standard Information

• Device Application: Duct
• Targeted Region: North America

Technical Specifications

• Resistance: 1K Ohm Platinum
• Operating Temperature: -50 F to 275 F (-45.5 C to 134.8 C)
• Depth: 43 mm
• Height: 102 mm
• Width: 54 mm
• Relative Humidity: 0-90 % RH, non-condensing
