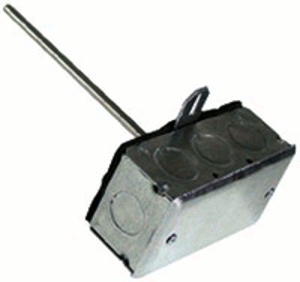

Schneider Electric ETD800-12 Temperature Sensor 12 Duct 10K Ohm Thermistor Replacement MPN

Product Description

The Schneider Electric ETD800-12 is a temperature sensor designed for HVAC applications. This device features a twelve-inch duct installation and utilizes a ten kilohm thermistor. It is designed to operate within a wide temperature range, from negative forty degrees Fahrenheit to three hundred two degrees Fahrenheit. The sensor is housed in a durable galvanized steel enclosure, making it suitable for various environmental conditions.

• 12-inch duct installation
• Accuracy: +/- 0.2 degrees Celsius from 0 degrees Celsius to 70 degrees Celsius
• Operating temperature range: -40 degrees Fahrenheit to 302 degrees Fahrenheit

Product Highlights

This temperature sensor is ideal for monitoring and controlling indoor temperature in HVAC systems. It is I/A compatible, ensuring integration with various building management systems. The robust construction guarantees reliability in challenging environments.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ETD800-12

Technical Specifications

• Type of Measurement: Temperature
• Sensor Type: 10 kOhm thermistor with 11 kOhm shunt

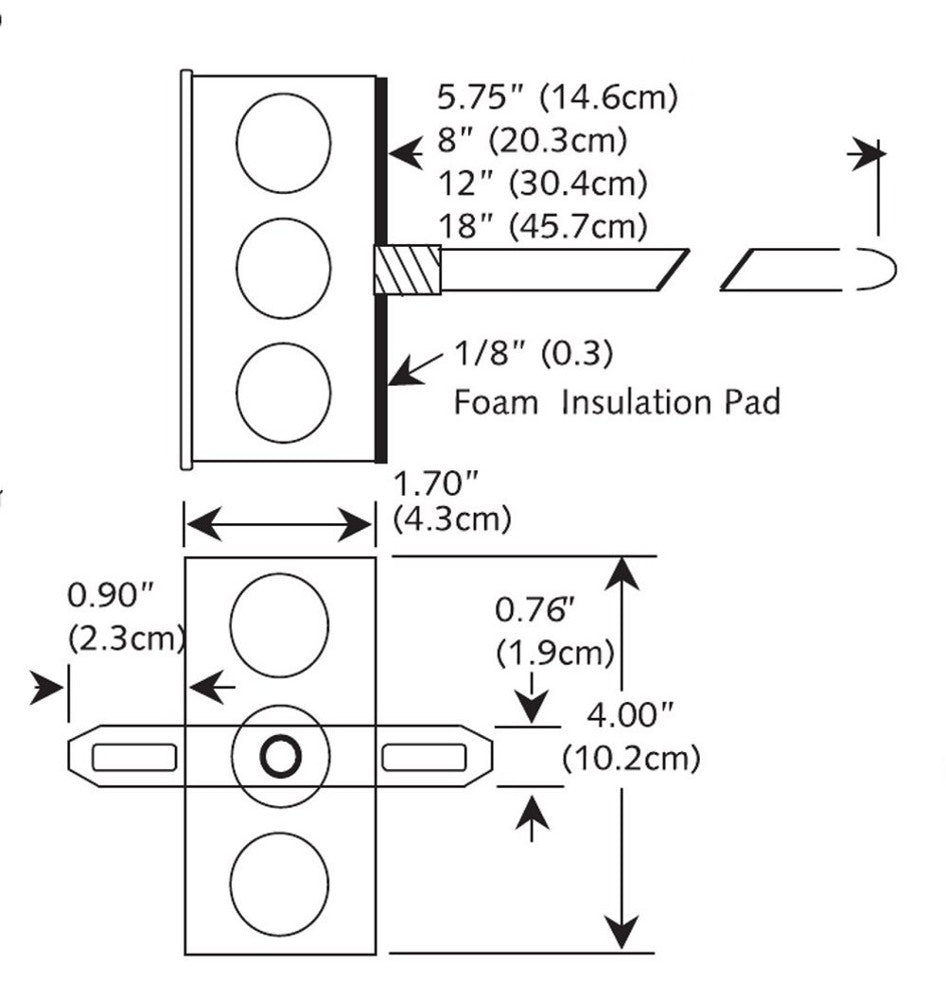

• Depth: 1.69 inches
• Height: 4.02 inches
• Width: 2.13 inches
• Relative Humidity: 0-90% RH, non-condensing
• Calibration Certificate: None
