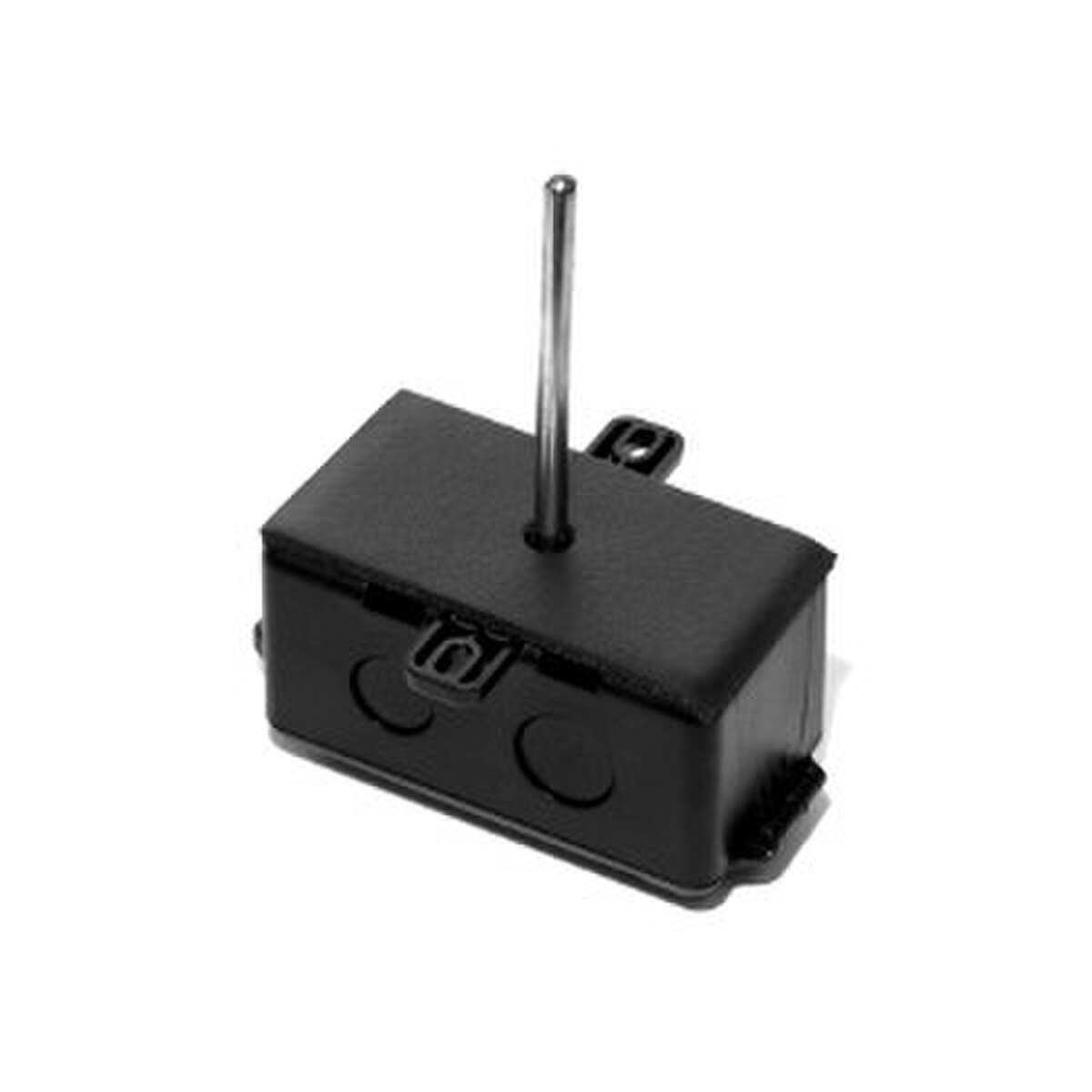

Schneider Electric ETD500-18-PB Temperature Sensor 18 in Duct

Product Description

The Schneider Electric ETD500-18-PB is a temperature sensor designed for use in duct applications. This sensor measures temperature with an accuracy of +/- 0.2 degrees Celsius from zero to seventy degrees Celsius. It features a 10k Type III thermistor, ensuring reliable temperature readings. The sensor operates in a wide temperature range from -40 degrees Fahrenheit to 302 degrees Fahrenheit.

• High accuracy of +/-0.2 C in the range of 0 to 70 C
• Compatible with Continuum systems
• Includes a plastic box with a hinged cover for protection

Product Highlights

This duct temperature sensor is suitable for various HVAC applications, ensuring precise temperature control in plant rooms and similar environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Temperature sensor

Technical Specifications

• MPN: ETD500-18-PB
• Accuracy: +/- 0.2 C (0-70 C), +/- 0.36 F (32-158 F)
• Resistance: 10,000 ohms at 77 degrees F (25 C)
• Operating Temperature Range: -40 F to 302 F (-40 C to 150 C)
• Depth: 43 mm
• Height: 102 mm
• Width: 54 mm
• Relative Humidity Range: 0-90% RH, non-condensing
