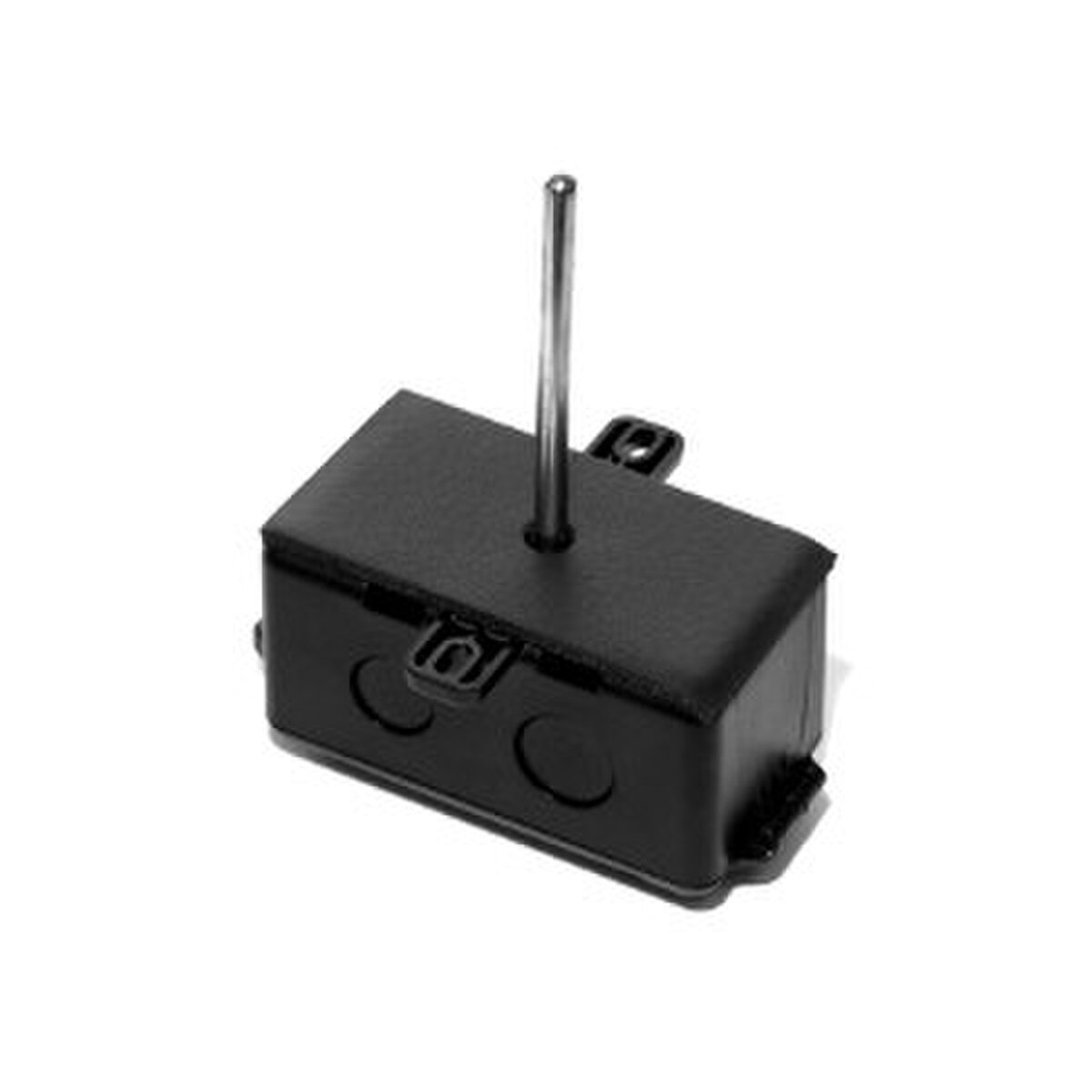

Schneider Electric ETD100-12-PB Temperature Sensor Power Duct

Product Description

The Schneider Electric ETD100-12-PB is a temperature sensor designed for duct applications. With a twelve inch length, this device features a high accuracy rating of +/-0.2 degrees Celsius, making it suitable for precise temperature monitoring in HVAC systems.

• Accuracy from 0 to 70 degrees Celsius: +/-0.2 degrees Celsius
• Built with a 1.8k Ohm thermistor
• Operates effectively in temperatures ranging from -40 degrees Fahrenheit to 302 degrees Fahrenheit

Product Highlights

This temperature sensor is ideal for maintaining reliable HVAC performance. It ensures precise readings for better climate control.

Product Information

Standard Information

• Product Type: Sensor
• Location: Plant room

Technical Specifications

• Sensor Type: Temperature
• Thermistor Resistance: 1.8k Ohm at 77 degrees Fahrenheit (25 degrees Celsius)
• Operating Temperature Range: -40 to 302 degrees Fahrenheit (-40 to 150 degrees Celsius)
• Device Application: Duct
• Dimensions: Width 54 mm, Height 102 mm, Depth 43 mm
• Relative Humidity: 0 to 90 % RH, non-condensing
• Material: Steel
