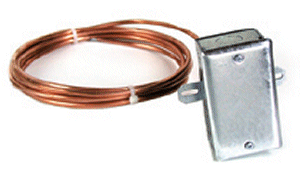

Schneider Electric ETAPK0-24 temperature sensor 24' duct average

Product Description

Schneider Electric ETAPK0-24 is a temperature sensor designed for HVAC systems. It features a duct averaging length of twenty-four feet using flexible copper material. The sensor provides reliable measurements with a one-kilo-ohm platinum sensor type, ensuring high accuracy in temperature sensing.

• Length: Twenty-four feet duct averaging
• Material: Flexible copper
• Operating Temperature: -50 F to 275 F

Product Highlights

This sensor is suitable for both indoor and outdoor environments. It excels in applications involving chillers and heat exchangers. With a temperature resolution of 0.1 °C, it helps monitor temperature changes effectively.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ETAPK0-24

Technical Specifications

• Type of Measurement: Temperature
• Accuracy: +/- 1.0 Ohm at 70 F
• Output: 1K Ohm at 32 F (0 C)
• Relative Humidity Range: 0-90 % RH, non-condensing

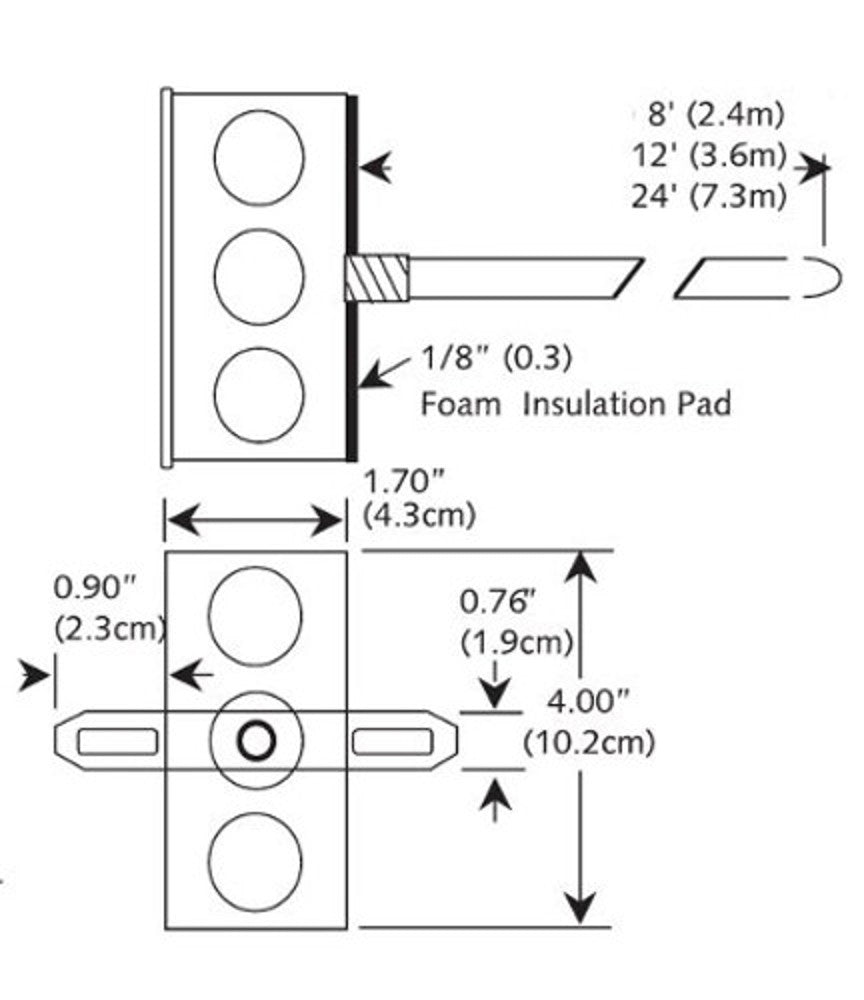

• Depth: 43 mm
• Height: 102 mm
• Width: 54 mm
