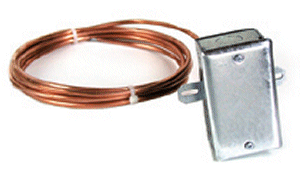

Schneider Electric ETAPK0-12 temperature sensor 12' duct averaging

Product Description

Schneider Electric ETAPK0-12 is a temperature sensor designed for 12-foot duct averaging. This sensor utilizes flexible copper for installation and shares temperature data accurately within HVAC systems.

• 12-foot duct averaging
• Flexible copper construction
• Accuracy of +/- 1.0 Ohm at seventy degrees Fahrenheit

Product Highlights

This temperature sensor is ideal for use in chillers and heat exchangers. Its capability of operating in a wide temperature range makes it suitable for various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: ETAPK0-12
• Output: 1K Ohm at 32 degrees Fahrenheit (0 degrees Celsius)
• Operating Temperature: -50 degrees Fahrenheit to 275 degrees Fahrenheit (-45.5 degrees Celsius to 134.8 degrees Celsius)

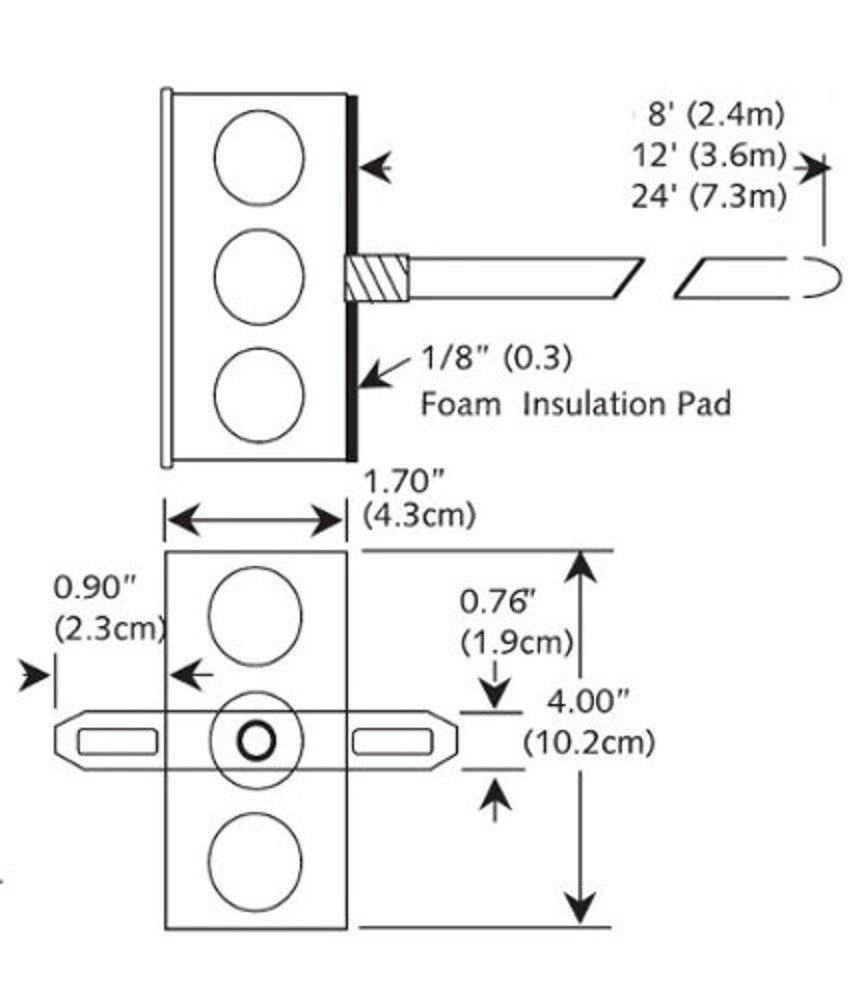

• Dimensions: 43 mm depth, 102 mm height, 54 mm width
• Relative Humidity: 0-90% RH, non-condensing
• Calibration Certificate: None
• Type of Measurement: Temperature
• Application: Chiller and heat exchanger averaging
