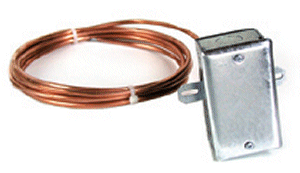

Schneider Electric ETA800-24 ET Series Temperature Sensor 24' Duct Average

Product Description

The Schneider Electric ETA800-24 is a temperature sensor designed for HVAC applications. This sensor measures the average temperature within ductwork. The unit features flexible copper wiring and is equipped with a 10K ohm thermistor alongside an 11K shunt. It allows compatibility with I/A systems, making it suitable for a variety of HVAC setups.

• Temperature measurement range: -40 F to 302 F
• Accuracy: +/- 0.2 C from 0 C to 70 C

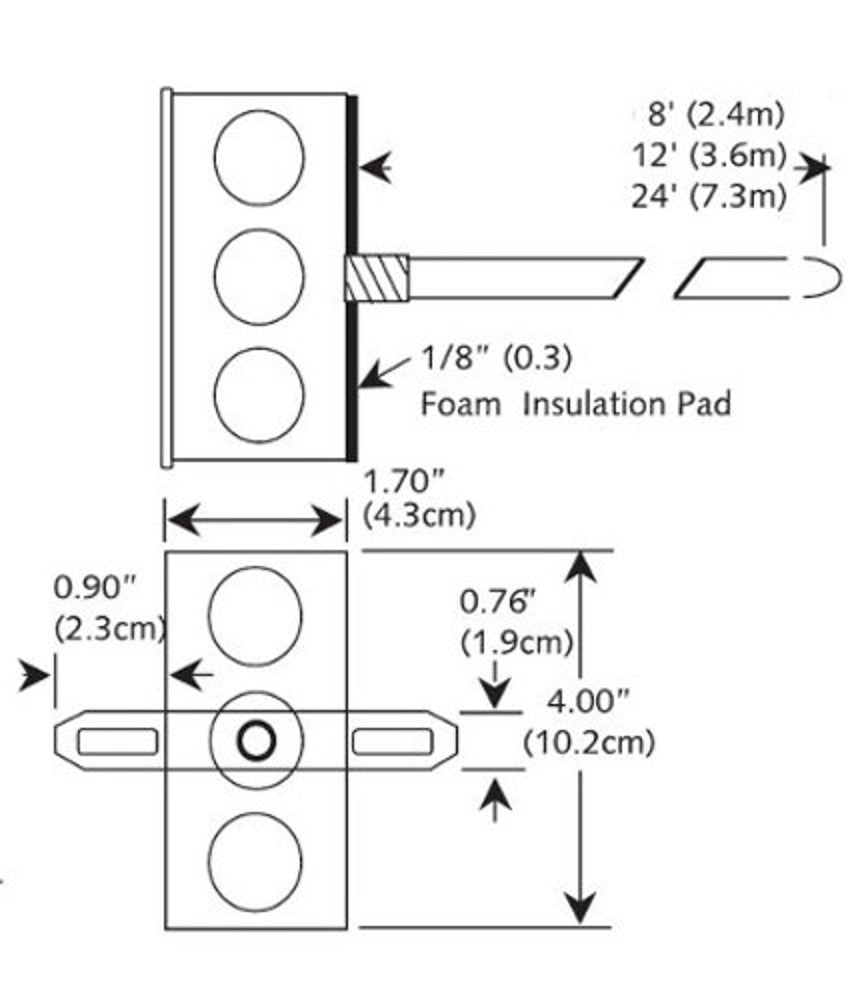

• Length of the duct averaging sensor: 24 feet

Product Highlights

This temperature sensor is ideal for monitoring temperature in various environments. Primarily, it is used within chillers and heat exchangers.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Sensor

Technical Specifications

• MPN: ETA800-24
• Operating Temperature: -40 F to 302 F
• Thermistor Resistance: 10K Ohm
• Shunt Resistance: 11K Ohm
• Accuracy: +/- 0.2 C from 0 C to 70 C
• Length: 24 feet
• Sensor Type: 10 kOhm thermistor with 11 kOhm shunt
• Relative Humidity Support: 0 to 90 % RH, non-condensing
