Schneider Electric ETA500-24-4X temperature sensor 24' Duct Averaging

Product Description

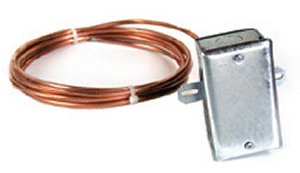

Schneider Electric ETA500-24-4X is a temperature sensor designed for duct averaging with a length of twenty-four feet. It features flexible copper material and maintains an accuracy of plus or minus zero point two degrees Celsius. The sensor is equipped with a 10K Ohm thermistor, compatible with Continuum systems, and housed in a NEMA 4X rated enclosure for reliable performance.

• Flexible design for installation in varied locations
• Accurate temperature readings suitable for HVAC applications
• Wide operating temperature range from -40 to 302 degrees Fahrenheit

Product Highlights

This sensor is ideal for use in plant rooms and other industrial settings, providing accurate measurements vital for managing chilling and heat exchange processes.

Product Information

Standard Information

• MPN: ETA500-24-4X
• Brand: Schneider Electric

Technical Specifications

• Sensor Type: temperature, 10 kOhm type 3 thermistor
• Operating Temperature: -40 F to 302 F (-40 C to 150 C)
• Accuracy: +/- 0.2 C (0 C to 70 C)
• IP Rating: NEMA 4X
• Relative Humidity: 0-90 % RH, non-condensing

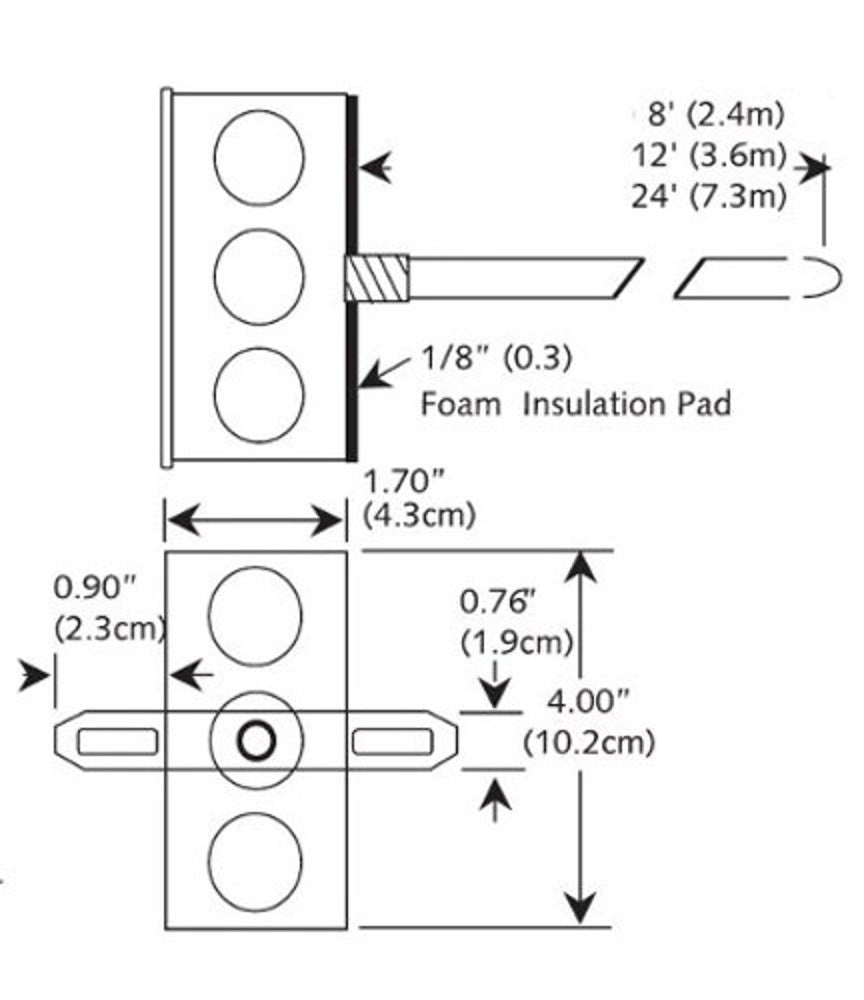

• Dimensions: 54 mm width, 102 mm height, 43 mm depth
• Output: 10K Ohms at 77 F (25 C)
• Material: copper
