Schneider Electric ETA100-8 Temperature Sensor 8' Duct Average

Product Description

The Schneider Electric ETA100-8 is a temperature sensor designed for HVAC applications. It features an eight-foot duct averaging capability which helps in providing accurate temperature readings within a duct system. This sensor utilizes a flexible copper design for easy installation and positioning.

• Accuracy: +/- 0.2 C from 0 C to 70 C
• 1.8K Ohm thermistor output
• Compatible with Vista systems

Product Highlights

This product is ideal for applications such as chillers and heat exchanger averaging. Its robust construction allows for operation in a wide temperature range, from negative forty degrees Fahrenheit to three hundred two degrees Fahrenheit.

Product Information

Standard Information

• Type of Measurement: temperature
• Sensor Type: temperature sensor with 1.8 kOhm thermistor

Technical Specifications

• Operating Temperature: -40 F to 302 F

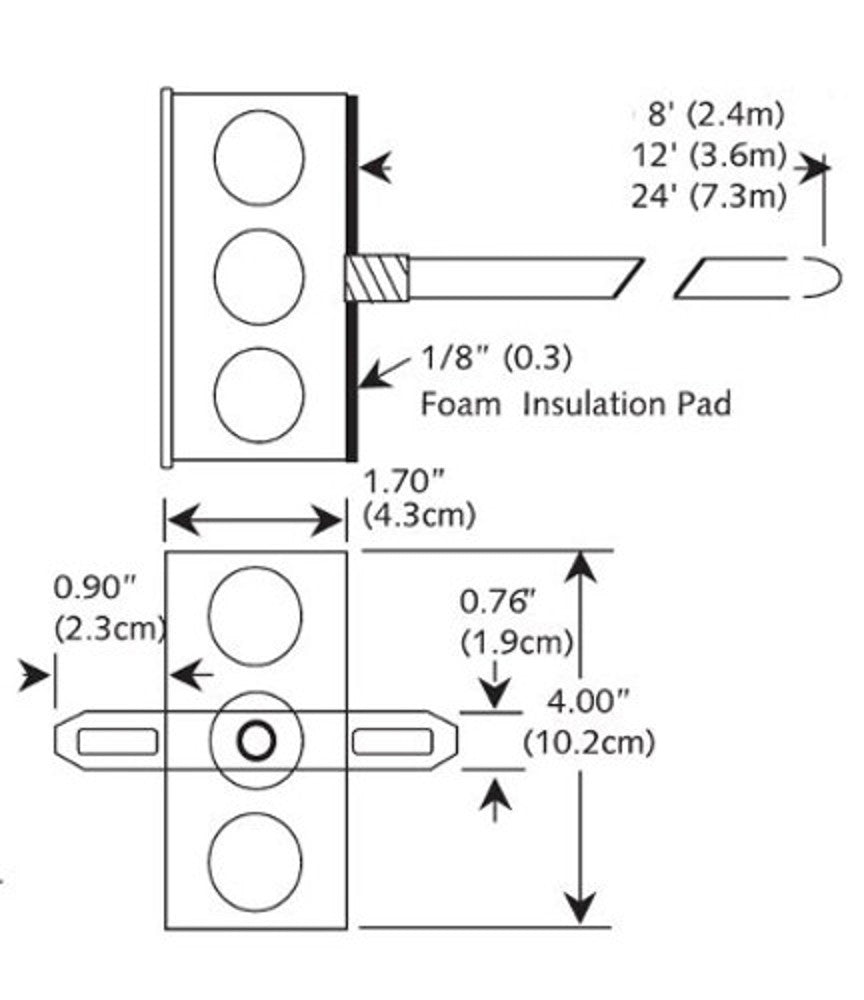

• Length: 8 ft
• Width: 54 mm
• Height: 102 mm
• Depth: 43 mm
• Relative Humidity Range: 0-90 % RH, non-condensing
• Temperature Resolution: 0.1 °C
• Location: plant room
