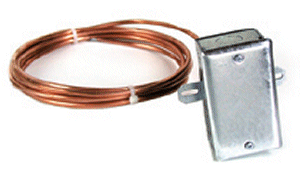

Schneider Electric ETA100-12 temperature sensor 12' Duct Averaging

Product Description

Schneider Electric ETA100-12 is a temperature sensor designed for accurate duct averaging applications. This sensor features a twelve-foot length and is made of flexible copper, suitable for various installation environments. It provides reliable performance with an accuracy of +/- 0.2 degrees Celsius, making it ideal for HVAC systems.

• 12-foot duct averaging capability
• 1.8K Ohm thermistor for precise temperature reading
• Compatible with Vista systems

Product Highlights

The ETA100-12 sensor operates in a temperature range from -40°F to 302°F, ensuring functionality under various conditions. It outputs 1.8K Ohms at twenty-five degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ETA100-12
• Country of Origin: Mexico
• Device Application: Duct Averaging

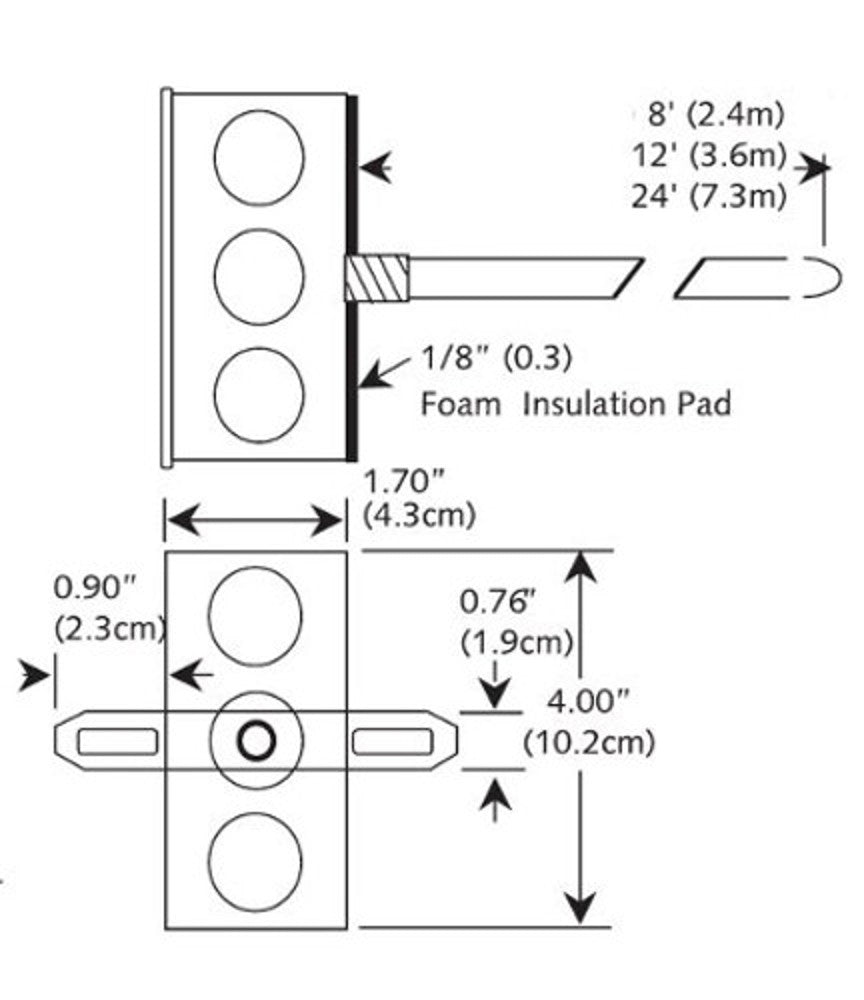

Technical Specifications

• Depth: 43.18 mm
• Height: 101.6 mm
• Width: 54.61 mm
• Operating Temperature: -40°F to 302°F
• Accuracy: +/- 0.2 C
• Output Signal: 1.8K Ohm at 25 C
• Temperature Sensor Type: Thermistor
