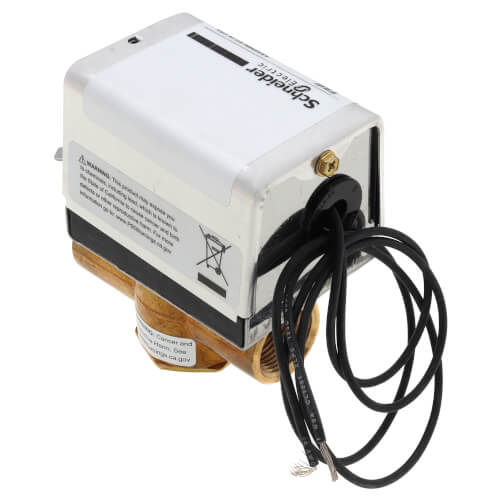

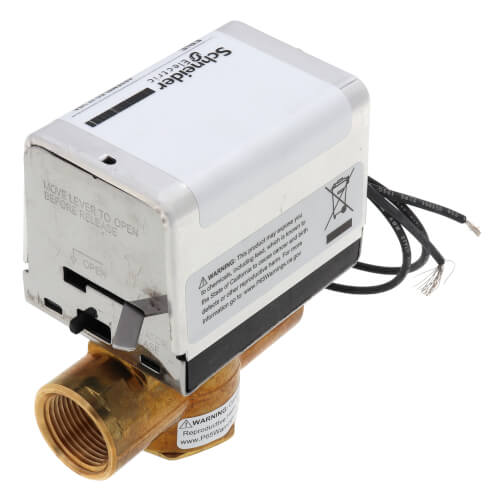

Schneider Electric Erie VS2327G14A020 3/4 inch NPT 2-Way Zone Valve 24V NC High Temp

Product Description

The Schneider Electric Erie model VS2327G14A020 is a 3/4 inch NPT 2-way zone valve designed for high-temperature applications, operating at 24V. This valve is suitable for use in heating and cooling systems, including fan coils and air handlers.

• Designed for reliability in high-temperature environments.

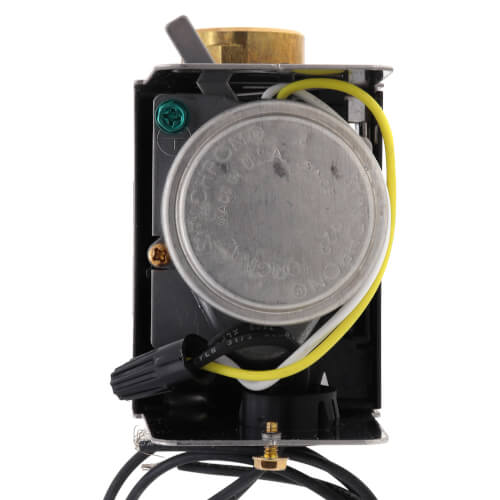

• Features a hysteresis synchronous motor for enhanced durability and performance.
• Equipped with a spring return operation for added safety and efficacy.

Product Highlights

This valve ensures low pressure steam applications with a fail-safe mechanism, featuring a direct replacement capability for PopTop applications. It supports ease of installation with its actuator capable of being fitted post valve body installation.

Product Information

Standard Information

• Connection Type: Threaded
• Body Pattern: 2-Way

Technical Specifications

• Connection Size: 3/4 inch NPT
• Voltage: 24V
• Flow Capacity: Cv 7.5
• Actuator Type: General Close-Off
• Operating Position: Normally Closed
• Manufacturing Brand: Erie by Schneider Electric
