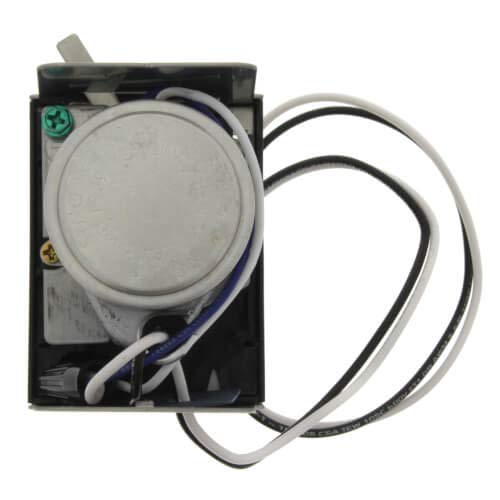

Schneider Electric VS2322G14A020 Zone Valve Assembly 24V

Product Description

The Schneider Electric VS2322G14A020 zone valve assembly is engineered for optimized control within heating and cooling systems. The unit features a 3/4 inch NPT connection and operates on 24 volts AC. Primarily intended for professionals in the HVAC industry, this valve provides reliable and precise management of water flow within zones.

• Efficient spring return operation ensures a dependable fail-safe mechanism.
• Compact design with an easy installation process – no additional linkages or calibration needed.
• Capable of handling pressures up to 40 PSI with a flow coefficient (Cv) of 2.5.

Product Highlights

Designed to offer both durability and usability, the Schneider Electric zone valve assembly features a hysteresis synchronous motor that extends the service life of the unit. It also includes a manual override lever and allows for actuator replacement without the need for tools or valve system removal.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS2322G14A020
• Type: Zone Valve
• Power Source: 24V AC

Technical Specifications

• Connection Size: 3/4 inch NPT
• Operation Pressure: Up to 40 PSI
• Flow Capacity: 2.5 Cv
• Body Pattern: 2-Way
• Actuator Type: On/Off, General Close-Off
• Connection Type: Threaded
