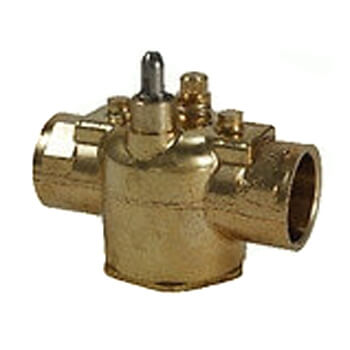

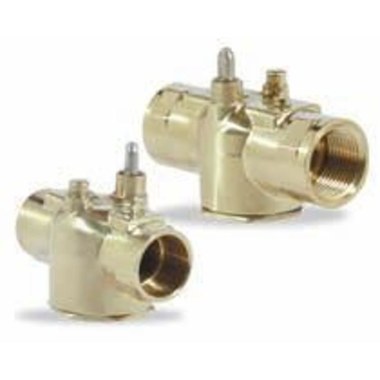

Schneider Electric VM2322 Zone Valve 3/4 Inch NPT 2-Way 2.0 Cv Modulating Replacement Erie VM2322

Product Description

The Schneider Electric Erie VM2322 is a 3/4 inch NPT 2-way zone valve designed for precise modulation in HVAC systems. Manufactured with robust materials, this valve ensures reliable operation and performance.

• 3/4 inch NPT threaded connection for easy installation
• 2-way configuration supports efficient modulating control
• 2.0 Cv flow capacity for effective fluid handling

Product Highlights

This valve is suitable for use with both hot and chilled water applications, making it versatile for various system needs. Its bronze body and stainless steel trim provide long-lasting durability in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric Erie
• MPN: VM2322

Technical Specifications

• Weight: 0.84 lbs
• Dimensions: 4.5 inches (L) x 4.2 inches (W) x 3.3 inches (H)
• Connection Type: Threaded NPT
• Valve Type: Modulating
• Body Material: Bronze
• Maximum Pressure: 300 psig
• Standards: Meets ANSI IV
