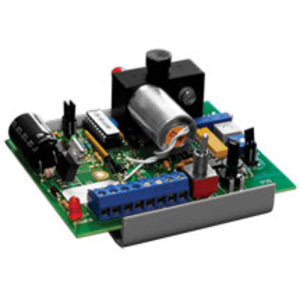

Schneider Electric EPW105 Wet Differential Pressure Transducer 0-250psig

Product Description

The Schneider Electric EPW105 is a wet differential pressure transducer designed for accurate pressure measurement in HVAC applications. This sensor features an output range of 0 to 250 pounds per square inch gauge and offers both analog and digital output options.

• Field selectable outputs: 4-20 mA, 0-5 VDC, and 0-10 VDC
• IP65 rated for dust and moisture protection
• Compatible with water as a controlled fluid

Product Highlights

This device is ideal for monitoring pressure in pumps and compressors, as well as for chiller differential pressure applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Sensor

Technical Specifications

• MPN: EPW105
• Pressure Range: 0 to 250 psig
• Accuracy: +/- 2% at 25 degrees Celsius
• Input Power: 12 to 30 VDC, 24 VAC nominal
• Temperature Range: -10 to 55 degrees Celsius
• Relative Humidity: 10% to 90% non-condensing
• Burst Pressure: 1250 psig
• Mounting Support: Wall mount
