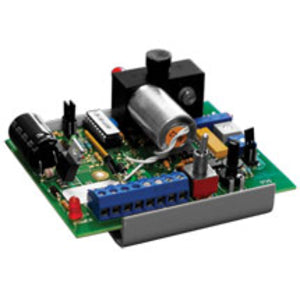

Schneider Electric EPW104 Electronic Pressure Sensor 100 PSIG 1/8 NPT

Product Description

Schneider Electric EPW104 is an electronic pressure sensor designed for measuring wet differential pressure. This sensor is ideal for monitoring air ducts, filters, and fans.

• Measuring range: 100 PSIG
• Analog output type: 0 to 10 V DC or 4 to 20 mA
• IP65 rated for protection against dust and water

Product Highlights

This sensor is suitable for applications involving pumps and compressors as well as chiller differential pressure monitoring.

Product Information

Standard Information

• Country of Origin: US
• Mounting Type: Wall mount

Technical Specifications

• Ambient Air Temperature for Operation: -10 to 55 °C
• Output Type: Analog 3-wire 0 to 10 V DC or 4 to 20 mA, user selectable
• Pressure Measurement Accuracy: Range A/B: +/- 1% FS; Range C: +/- 1.5% FS; Range D: +/- 2% FS
• Current Consumption: 20 mA
• Fitting Size: 1/8 NPT
• Device Application: Pump and compressor differential pressure, chiller differential pressure monitoring
• Local Signaling: Red/green LED
• Environmental Characteristics: EMC
• Material: Powder-coated aluminum
