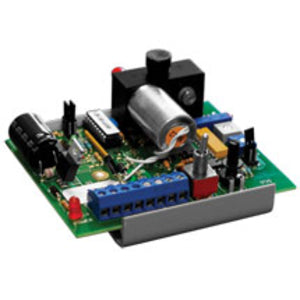

Schneider Electric EPW103 Differential Air Pressure Transducer

Product Description

Schneider Electric EPW103 is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. This sensor operates on a power supply of twelve to thirty volts DC or twenty-four volts AC nominal. It provides precise readings across a pressure range suitable for HVAC applications.

• Pressure range: fifty PSIG
• Field selectable outputs
• LED status indicator

Product Highlights

This device is suitable for measuring wet differential pressure in HVAC systems, ensuring optimal performance and energy efficiency.

Product Information

Standard Information

• Origin: US
• Product Type: Sensor

Technical Specifications

• MPN: EPW103
• Accuracy: +/- 2% at twenty-five degrees Celsius
• Operating Temperature: -10 to 55 degrees Celsius
• Humidity Range: 10-90% non-condensing
• Dimensions: Width - one hundred forty-seven mm, Height - one hundred two mm, Depth - fifty-seven mm
• Mounting Mode: Wall mount
• Output Type: Analog three-wire zero to ten volts DC or four to twenty milliamps user selectable
• Ingress Protection: IP65
• Material: Powder-coated aluminum enclosure
• Weight: eight hundred sixty-three point sixty-four grams
