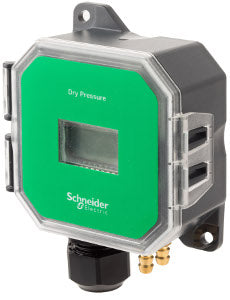

Schneider Electric EPU305 Differential Air Pressure Trans 12...30 V DC 24 V AC

Product Description

The Schneider Electric EPU305 is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. This sensor is suitable for use in HVAC systems, making it an essential tool for professionals in the field.

• IP65 rated for durable and reliable use in tough environments
• Measuring range from 0 to 10 inches water column (0 to 2500 Pa)
• Supports various applications including duct pressure monitoring and fan speed control

Product Highlights

This device offers high accuracy and is reliable for monitoring differential air pressure in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Sensor

Technical Specifications

• MPN: EPU305
• Measured Fluid: Air, Gas
• Ambient Temperature Range: -20 to 60 degrees Celsius
• Burst Pressure: 5 psid (34.5 kPa)
• Fitting Size: 6 mm
• IP Protection: IP65
• Device Application: Duct pressure monitoring, filter monitoring, fan monitoring
• Weight: 0.125 kg
• Dimensions: 88 mm width, 112 mm height, 42 mm depth
