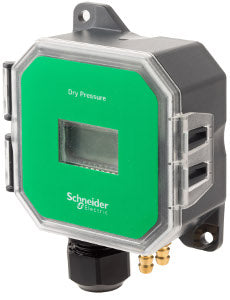

Schneider Electric EPP302 EP Series Differential Pressure/Air Velocity Transducer 0-10 in. WC/0-2500Pa

Product Description

The Schneider Electric EPP302 is an EP Series differential pressure and air velocity transducer designed for reliable performance in HVAC systems. It features panel mounting and has a measurement range from 0 to 10 inches of water column or 0 to 2500 Pascals.

• Panel mount for easy installation
• Measurement ranges including 0...1 W.C. to 0...10 W.C.
• Designed for duct pressure monitoring and air velocity applications

Product Highlights

This sensor is ideal for monitoring duct pressure, filter status, and fan performance. It supports various applications such as VAV control and air velocity monitoring.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: EPP302
• Product Type: Sensor
• Ambient Air Temperature for Operation: -20 to 60 °C
• IP Degree of Protection: IP65
• Mounting Mode: Panel
• Pressure Measurement Range: 0...1 W.C. (0...250 Pa), 0...2.5 W.C. (0...500 Pa), 0...5 W.C. (0...1000 Pa), 0...10 W.C. (0...2500 Pa)
• Height: 4.41 inches
• Width: 3.46 inches
• Depth: 1.65 inches
• Weight: 0.125 kg
• Probe Diameter: 0.28 inches
