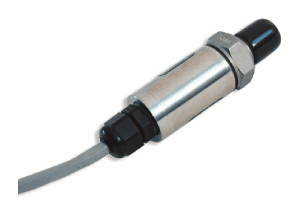

Schneider Electric EPG108-AV Gauge Pressure Sensor, 3-Wire (0 To 250 psig)

Product Description

Schneider Electric's EPG108-AV is a gauge pressure sensor designed for a variety of applications requiring precise pressure monitoring. The sensor operates within a pressure range of zero to two hundred fifty pounds per square inch gauge (psig) and offers a voltage output of zero to ten volts direct current (VDC). It is powered by a supply voltage ranging from ten to twenty-eight volts direct current (VDC), making it suitable for integration into existing systems.

• Pressure range: 0 to 250 psig
• Output: 0 to 10 VDC
• Input power: 10 to 28 VDC

Product Highlights

This sensor is ideal for applications in HVAC systems, particularly for monitoring air ducts, filters, and fans. The robust design and wide operating temperature range of negative thirty to one hundred twenty degrees Celsius ensure reliability in various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer Part Number: EPG108-AV

Technical Specifications

• Input Power: 10 to 28 VDC
• Output Voltage: 0 to 10 VDC
• Pressure Measurement Range: 0 to 250 psig (0 to 17 bar)
• Pressure Accuracy: +/- 0.25 % BFSL
• Burst Pressure: 1250 psig (85 bar)
• IP Classification: IP66
• Operating Temperature: -30 to 120 °C
• Wiring Technique: 3-wire
