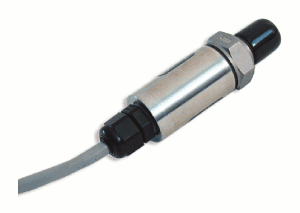

Schneider Electric EPG108-AJ Gauge Pressure Sensor 3-Wire

Product Description

The Schneider Electric EPG108-AJ is a gauge pressure sensor designed for monitoring applications in HVAC systems. This 3-wire sensor operates within a pressure range of zero to two hundred fifty psig, with an output signal of zero to five VDC and a supply voltage range of ten to twenty-eight VDC.

• Pressure range: 0 to 250 psig
• Output: 0 to 5 VDC
• Power supply: 10 to 28 VDC

Product Highlights

This sensor is ideal for precise monitoring of pressure in pumps, compressors, and other HVAC equipment. It features a robust design suitable for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: EPG108-AJ

Technical Specifications

• Input Power: 10 to 28 VDC
• Output Signal: 0 to 5 VDC
• Pressure Measurement Range: 0 to 250 psi (0 to 17 bar)
• Burst Pressure: 1250 psig (85 bar)
• IP Degree of Protection: IP66
• Ambient Air Temperature for Operation: -30 to 120 °C
• Fitting Size: 1/4 NPT
• Type of Measurement: Gauge pressure
