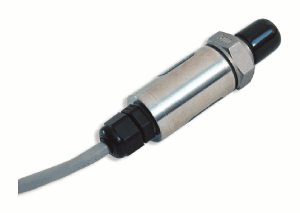

Schneider Electric EPG105-AJ Differential Air Pressure Transducer 0-50 psi CE

Product Description

Schneider Electric EPG105-AJ is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. It operates within a pressure range from zero to fifty psi and provides reliable output for various applications.

• Input Power: 10 to 28 VDC
• Output: 0 to 5 VDC
• IP66 rated for protection against dust and water

Product Highlights

This sensor is suited for pump and compressor monitoring, energy and water management, and refrigerant equipment oversight.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Pressure Measurement Range: 0 to 50 psi (0 to 3.5 bar)
• Pressure Measurement Accuracy: +/- 0.25 % BFSL
• Ambient Air Temperature for Operation: -30 to 120 °C
• Relative Humidity: 0 to 95 % RH, non-condensing
• Fitting Size: 1/4 NPT male
• Burst Pressure: 250 psig (17 bar)
• Wiring Technique: 3-wire
• Product Certifications: CE
