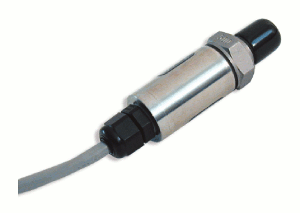

Schneider Electric EPG103-AV Gauge Pressure Sensor, 3-Wire

Product Description

The Schneider Electric EPG103-AV Gauge Pressure Sensor offers precise pressure monitoring capabilities for HVAC applications. This sensor has a pressure range of zero to fifteen pounds per square inch gauge. It operates on a supply voltage of ten to twenty-eight volts DC and outputs a signal of zero to ten volts DC, making it suitable for a variety of control systems.

• Pressure range: 0 to 15 psig
• Output: 0 to 10 VDC
• Supply voltage: 10 to 28 VDC

Product Highlights

This sensor is designed for applications such as air duct pressure monitoring, filter and fan status checks, and HVAC control. With an IP66 rating, it is protected against dust and water, ensuring reliability in harsh environments.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: EPG103-AV

Technical Specifications

• Pressure Measurement Range: 0 to 15 psi
• Input Power: 10 to 28 VDC
• Output Signal: 0 to 10 VDC
• Ambient Air Temperature for Operation: -30 to 120 °C
• IP Degree of Protection: IP66

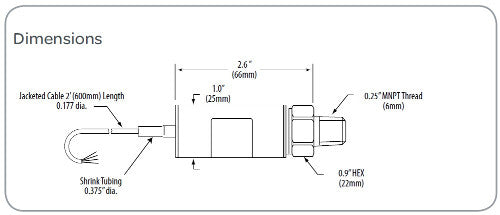

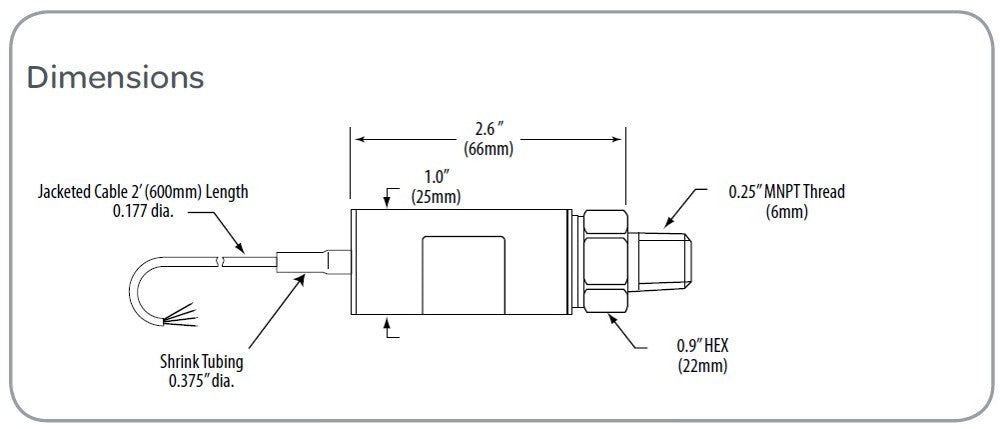

• Fitting Size: 1/4 NPT
• Wiring Technique: 3-wire
• Application: Suitable for pump and compressor monitoring
