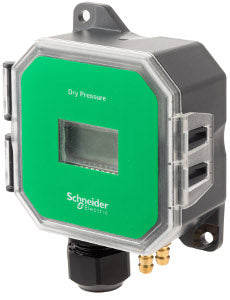

Schneider Electric EPD301LCD Differential Air Pressure Transmitter for HVAC Air Duct Monitoring

Product Description

The Schneider Electric EPD301LCD is a differential air pressure transmitter designed to monitor air ducts, filters, and fans. This sensor is suitable for HVAC applications and ensures accurate pressure readings in various environments.

• Wide ambient temperature range from -20 to 60 degrees Celsius.
• IP65 rated for solid particle and water resistance.
• Multiple pressure measurement ranges available, from zero to zero point five inches of water column.

Product Highlights

This electronic pressure sensor is ideal for applications like duct pressure monitoring, filter monitoring, fan control, and VAV control.

Product Information

Standard Information

• Product Type: Sensor
• Origin: US

Technical Specifications

• MPN: EPD301LCD
• IP Degree of Protection: IP65
• Maximum Operating Temperature: -20 to 60 degrees Celsius
• Pressure Measurement Range: 0 to 0.1 W.C., 0 to 0.25 W.C., 0 to 0.5 W.C., and 0 to 1 W.C.
• Compatible Fluid: Air, Gas
• Burst Pressure: 5 psid (34.5 kPa)
• Dimensions: 112 mm height, 88 mm width, and 42 mm depth
• Weight: 0.125 kg
