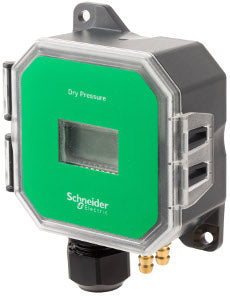

Schneider Electric EPD301 differential air pressure transducer 12-30 V DC

Product Description

The Schneider Electric EPD301 is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. It supports a wide range of measurements suitable for HVAC applications. The EPD301 operates efficiently across a temperature range of negative twenty to sixty degrees Celsius.

• IP65 rated for protection against dust and water
• Measurement range from zero to 1 water column
• Local signaling with red, green, and blue LED indicators

Product Highlights

This device is ideal for duct pressure monitoring and VAV control. It connects easily to various systems, providing precise readings for air processing machinery.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Sensor

Technical Specifications

• IP Degree of Protection: IP65
• Pressure Measurement Range: 0...0.1 W.C. (0...25 Pa), 0...0.25 W.C. (0...50 Pa), 0...0.5 W.C. (0...100 Pa), 0...1 W.C. (0...250 Pa)
• Ambient Air Temperature for Operation: -20-60 °C
• Output Type: 12...30 V DC, 24 V AC
• Height: 112 mm
• Width: 88 mm
• Depth: 42 mm
• Net Weight: 0.125 kg
