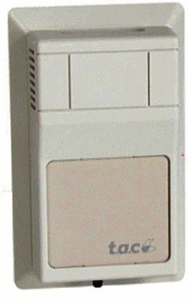

Schneider Electric EHR110 Relative Humidity Sensor 15...36 V DC

Product Description

The Schneider Electric EHR110 is a relative humidity sensor designed for efficient wall installation. This sensor provides accurate measurements with a precision of plus or minus two percent. It supports multiple field-selectable output signals, making it adaptable for various applications.

• Single point field calibration
• Field selectable output signals: 4-20 mA, 0-5 VDC, 0-10 VDC
• Low drift performance

Product Highlights

This sensor is suitable for use in living spaces and is effective for humidity measurement within OEM applications, humidity chambers, and building automation systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: EHR110
• Type of Measurement: Humidity
• Operating Voltage Range: 15...36 V DC, 18...36 V DC, 21.6...26.4 V AC
• Measurement Accuracy: 0.1
• Ambient Air Temperature for Operation: -23.3 to 50 degrees Celsius
• Dimensions: 2.53 cm x 11.43 cm x 17.77 cm
• Weight: 0.001 kg
