Schneider Electric EHR110-LCD humidity sensor 15...36 V DC|||22...26 V AC|||

Product Description

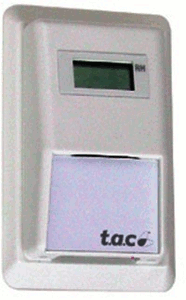

The Schneider Electric EHR110-LCD is a humidity sensor designed for wall installation. It features single-point field calibration and offers field-selectable output signals. With an accuracy of plus or minus 2% and a low drift of less than 2% over five years, it is reliable for monitoring humidity levels in various settings.

• Field calibration capabilities
• LCD display for easy reading
• Selectable output signals of 4-20mA, 0-5 VDC, and 0-10 VDC

Product Highlights

This sensor is ideal for use in living spaces and commercial buildings where precise humidity control is important. Its compact design allows for easy wall mounting.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Sensor

Technical Specifications

• MPN: EHR110-LCD
• Accuracy: ±2%
• Measurement Resolution: 0.1 % RH
• Output Type: 4-20 mA, 0-5 VDC, 0-10 VDC
• Depth: 29 mm
• Height: 115 mm
• Width: 70 mm
• Operating Voltage: 15...36 V DC, 22...26 V AC
