Schneider Electric EHR110-800 Humidity Sensor Wall Installation

Product Description

The Schneider Electric EHR110-800 is a relative humidity and temperature combo sensor designed for precise wall installation. This unit provides a single point field calibration and is equipped to deliver field-selectable output signals. It guarantees a plus or minus two percent accuracy, ensuring reliable readings in various environments.

• Single point field calibration
• Field selectable output signals: 4-20mA, 0-5 VDC, 0-10 VDC
• Low drift with a measurement accuracy of less than two percent over five years

Product Highlights

This sensor is ideal for HVAC applications, providing accurate humidity and temperature measurements in living spaces. Its wall mounting support makes it a versatile choice for various installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Type of Measurement: Humidity and temperature

Technical Specifications

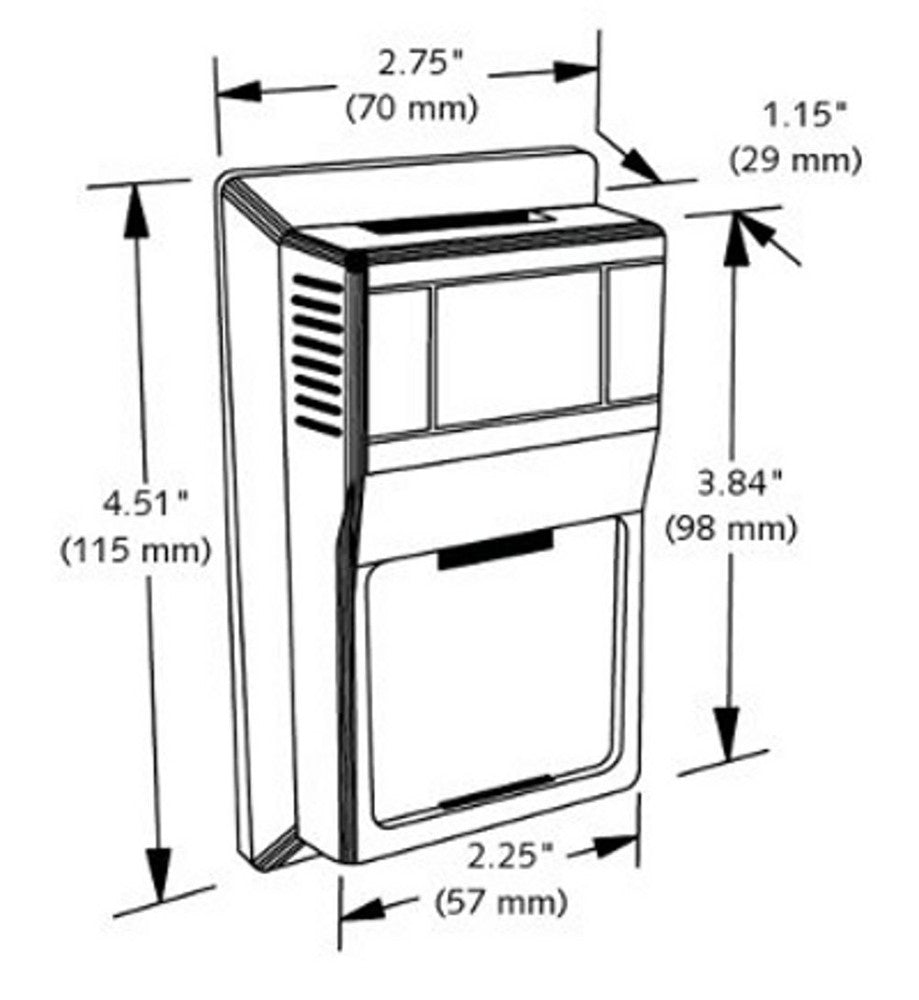

• Height: 115 mm
• Width: 70 mm
• Depth: 29 mm
• Humidity Measurement Resolution: 0.1 % RH
• Operating Voltage: 15...36 V DC / 22...26 V AC
• Drift of the Sensitivity: < 2 % for 5 years
• Device Application: Wall installation
