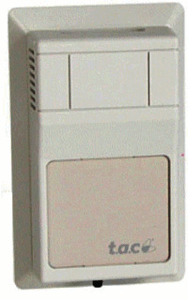

Schneider Electric EHR110-500 EH Series Room Humidity and Temperature Sensor 15...36 V DC|||22...26 V AC|||

Product Description

The Schneider Electric EHR110-500 is an EH Series room humidity and temperature sensor designed for wall installation. This device offers features such as single point field calibration and field selectable output signals. It maintains a high accuracy of 2% and has low drift for reliable measurements.

• Room humidity and temperature measurement
• 2% accuracy
• Field selectable outputs including 4-20mA and 0-10 VDC

Product Highlights

This sensor is suitable for HVAC applications, providing precise readings for both humidity and temperature in indoor environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Type of Measurement: humidity and temperature
• Humidity Measurement Resolution: 0.1 % RH
• Output Type: analog and resistive output

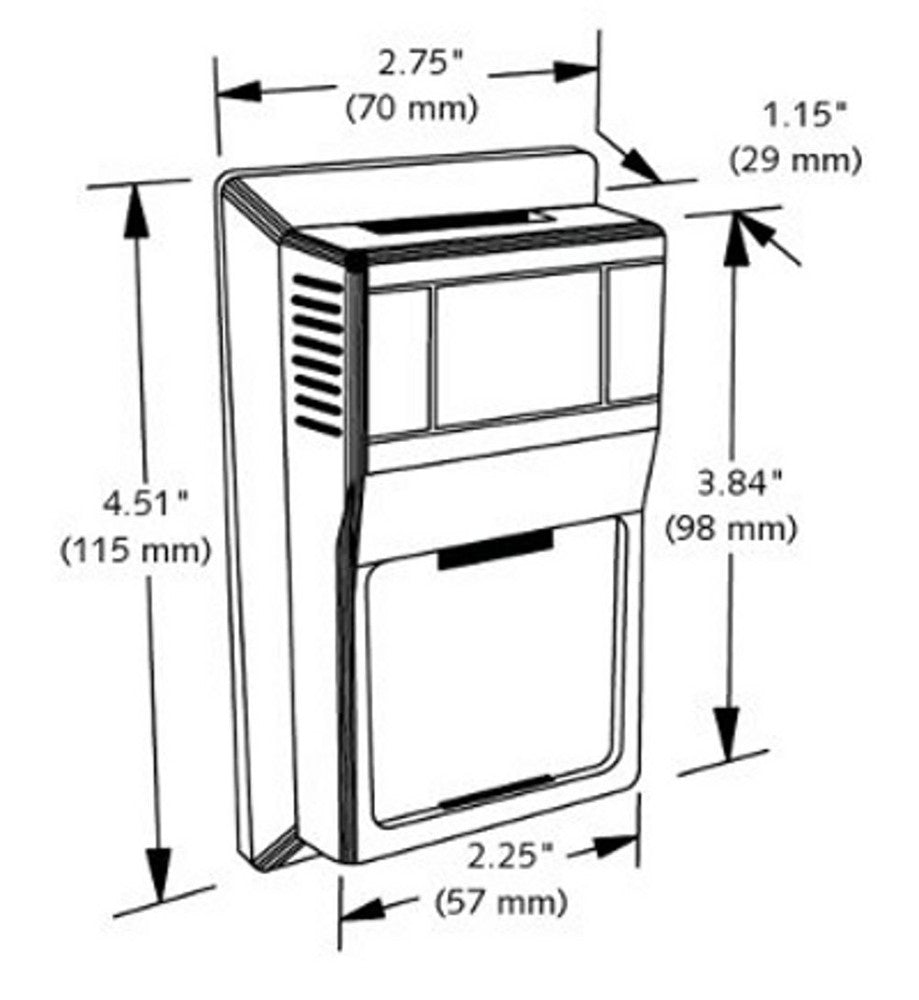

• Height: 4.53 inches
• Width: 2.76 inches
• Depth: 1.14 inches
• Operating Voltage: 15...36 V DC or 22...26 V AC
• Material: enclosure
