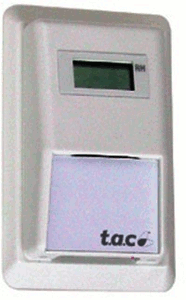

Schneider Electric EHR110-200-LCD humidity sensor

Product Description

The Schneider Electric EHR110-200-LCD is a humidity and temperature sensor designed for wall installation in living spaces. It features single point field calibration and is capable of delivering field-selectable output signals for accurate environmental monitoring.

• Field selectable outputs: 4-20 mA, 0-5 VDC, 0-10 VDC
• Plus or minus 2% accuracy
• LCD display for easy reading

Product Highlights

This sensor provides reliable humidity and temperature measurements with a humidity measurement resolution of 0.1% relative humidity. It is built for stability with low drift over time, ensuring consistent performance in various conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Sensor

Technical Specifications

• MPN: EHR110-200-LCD
• Measurement Type: Humidity, Temperature
• Accuracy: ±2%
• Humidity Measurement Resolution: 0.1% RH
• Display Type: LCD

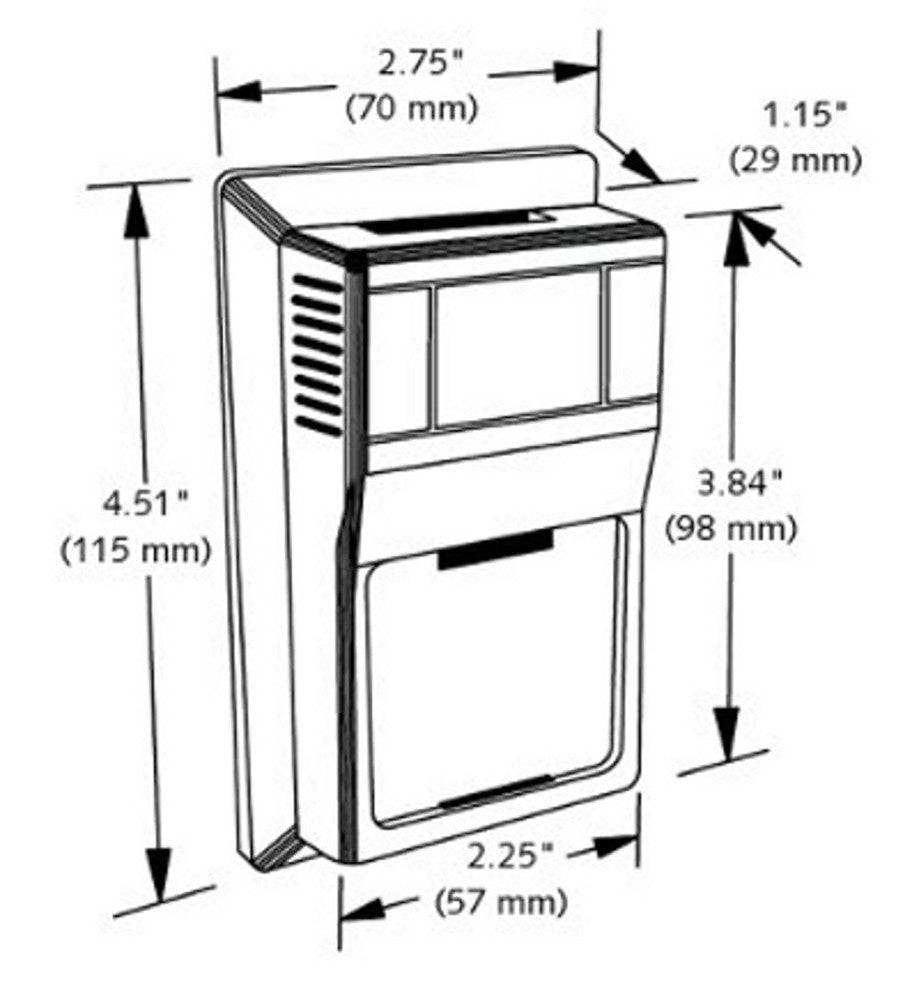

• Depth: 1.14 inches
• Height: 4.53 inches
• Width: 2.76 inches
• Operating Voltage: 15...36 V DC / 22...26 V AC
• Location: Living space
