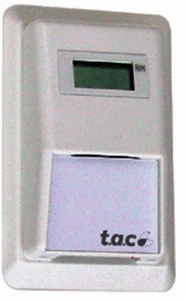

Schneider Electric EHR110-100-LCD humidity sensor

Product Description

Schneider Electric EHR110-100-LCD is a humidity sensor designed for wall installation. It features a precise LCD display and provides reliable humidity and temperature readings. The sensor is suitable for use in living spaces and other environments.

• Field calibration capability
• Selectable output signals (4-20mA, 0-5 VDC, 0-10 VDC)
• Low humidity drift for extended accuracy

Product Highlights

This sensor offers exceptional accuracy of plus or minus 2%, making it ideal for HVAC applications. It helps professionals monitor environmental conditions effectively.

Product Information

Standard Information

• Brand: Schneider Electric
• Device Application: Wall installation

Technical Specifications

• Type of Measurement: Humidity, Temperature
• Humidity Measurement Resolution: 0.1 % RH
• Drift of The Sensitivity: Less than 2%, for 5 years
• Display Type: LCD

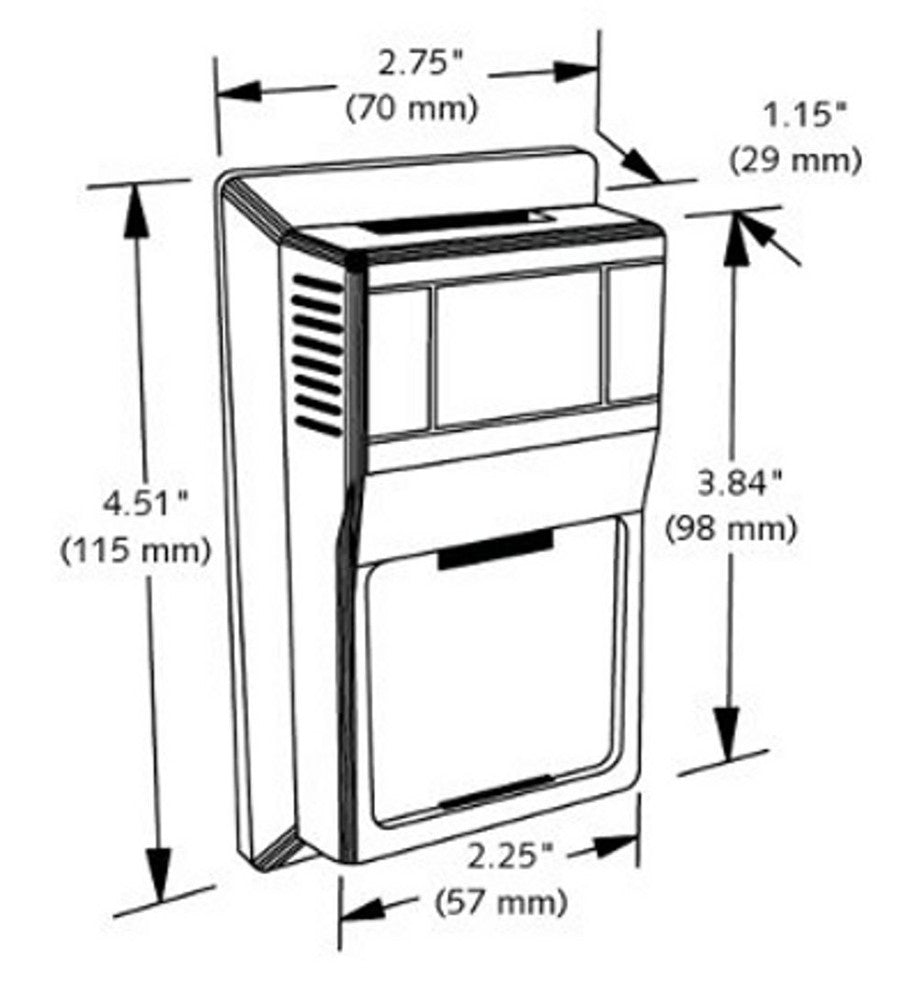

• Dimensions: 115 mm height, 70 mm width, 29 mm depth
• Operating Voltage: 15...36 V DC / 22...26 V AC
• Location: Living space
